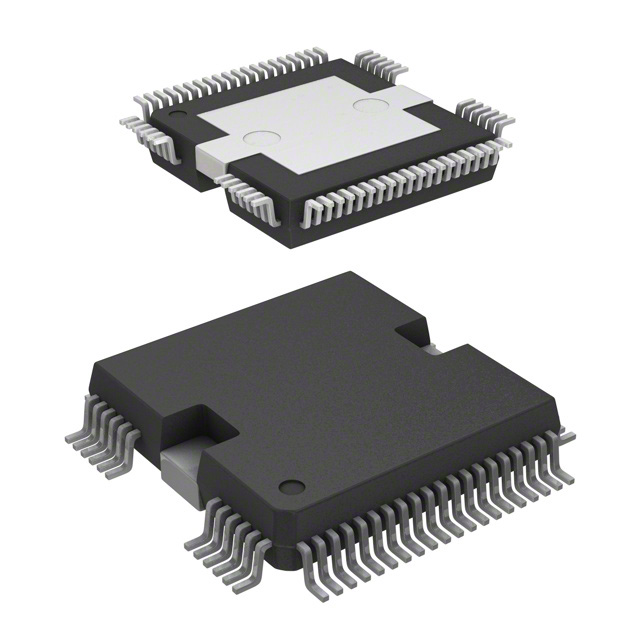

TLE6244XAUMA1
IC PWR SWITCH N-CHAN 1:1 MQFP64Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies TLE6244XAUMA1 is an 18-channel N-channel power switch/driver designed for general-purpose applications. This component features SPI interface for control and utilizes a 64-BQFP Exposed Pad package. It offers robust fault protection including over-temperature and over-voltage capabilities. The output configuration is low-side, with each output capable of handling various loads. Operating within a junction temperature range of -40°C to 150°C, the TLE6244XAUMA1 is suitable for demanding environments. The voltage load range is specified from 4.5V to 5.5V. This device finds application in automotive and industrial control systems requiring reliable power distribution.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-BQFP Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 18 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | - |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-MQFP-64-10 |
| Fault Protection | Over Temperature, Over Voltage |
