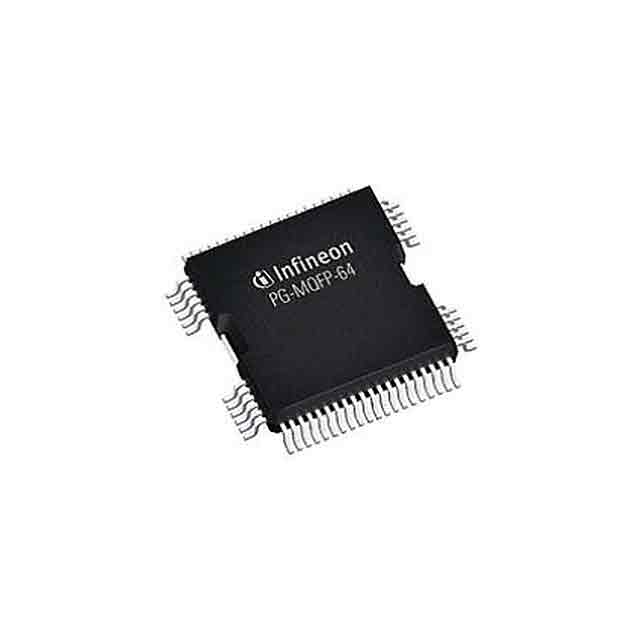

TLE6244XAQMA1
IC PWR SWITCH N-CHAN 1:1 MQFP64Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies TLE6244XAQMA1, a highly integrated power control IC, offers robust solutions for demanding automotive and industrial applications. This device features an array of 18 N-channel low-side outputs, configurable for general-purpose switching. The TLE6244XAQMA1 provides comprehensive fault protection, including over-temperature and over-voltage detection, ensuring system reliability. Communication and control are managed via a serial peripheral interface (SPI). The component is housed in a 64-pin PG-MQFP-64-10 package, suitable for surface mount assembly. Its operating temperature range of -40°C to 150°C (TJ) makes it appropriate for challenging environmental conditions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 64-BQFP Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 18 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | - |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-MQFP-64-10 |
| Fault Protection | Over Temperature, Over Voltage |
