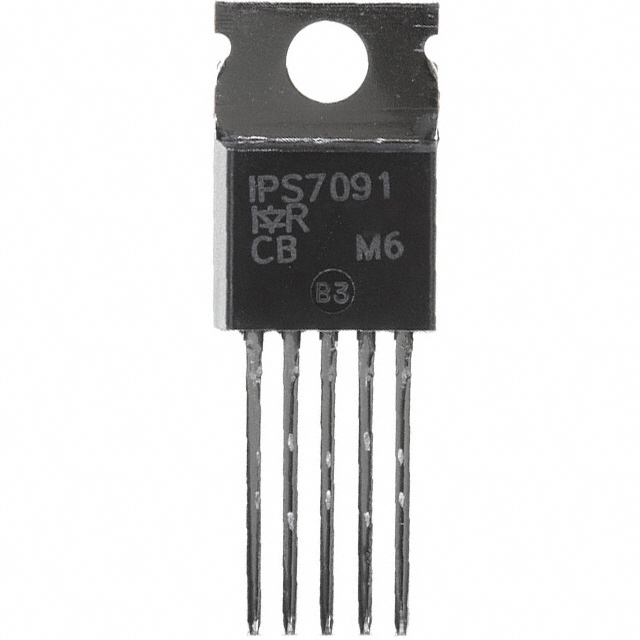

IPS7091PBF
IC PWR SWITCH HI SIDE TO220ABManufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies IPS7091PBF is a high-side power switch designed for robust load control. This component, housed in a TO-220AB (5-LEAD) package, offers a continuous output current capability of 1.5A. Featuring a low on-resistance of 80mOhm (typical), it minimizes power dissipation. The device operates across a wide voltage range, supporting loads from 6V to 35V. Its non-inverting input simplifies circuit design. The IPS7091PBF is suitable for applications in automotive, industrial automation, and power management systems where reliable load switching and protection are critical. The component is supplied in tube packaging for efficient handling in manufacturing environments.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 35V |
| Current - Output (Max) | 1.5A |
| Supplier Device Package | TO-220AB (5-LEAD) |
