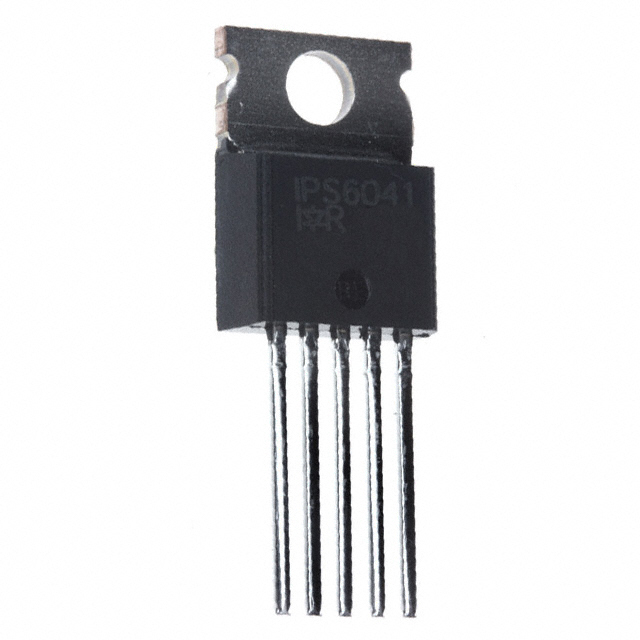

IPS6041PBF
IC PWR SWITCH HI SIDE TO220ABManufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies IPS6041PBF is a high-side power switch designed for robust load control. This TO-220AB (5-LEAD) packaged component offers a maximum output current of 2.3A with a typical on-resistance of 110mOhm. It features a non-inverting input and a single high-side output configuration, operating within a voltage range of 6V to 28V. The IPS6041PBF is suitable for demanding applications across automotive, industrial automation, and power management sectors. Its through-hole mounting facilitates integration into existing circuit designs. The component operates reliably across a wide temperature range of -40°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 110mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 28V |
| Current - Output (Max) | 2.3A |
| Supplier Device Package | TO-220AB (5-LEAD) |
