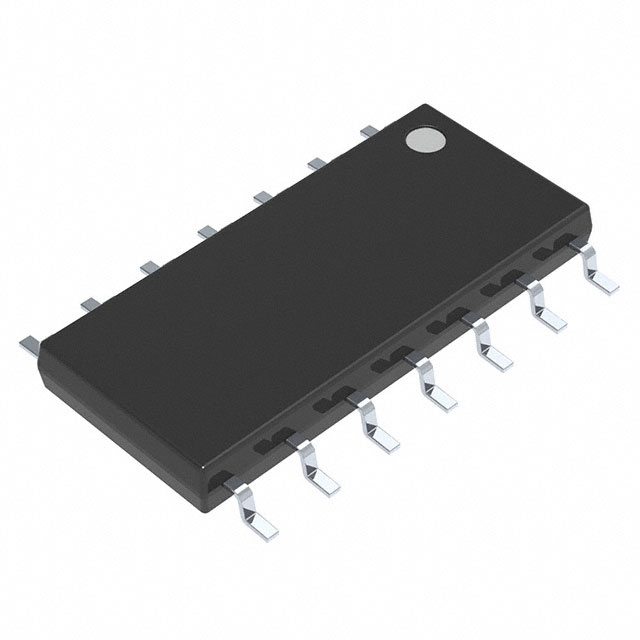

BTT61002ERAXUMA1
IC PWR SWITCH N-CHAN 1:1 TDSO-14Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies PROFET® BTT61002ERAXUMA1 is a dual-channel, N-channel power switch designed for high-side load driving applications. This PG-TDSO-14-21 packaged device offers a fixed current limit of 2.2A per channel and features integrated fault protection including over-temperature, over-voltage, open-load detection, and current limiting. With a low Rds(on) of 100mOhm typically, it provides efficient power switching. The BTT61002ERAXUMA1 operates within a load voltage range of 5V to 36V and is qualified to AEC-Q100 standards, making it suitable for automotive applications. Its ON/OFF interface simplifies control, and the 1:1 input-to-output ratio ensures direct signal translation. This component is commonly utilized in automotive power distribution systems and general-purpose load driving within the automotive industry.
Additional Information
Series: PROFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TDSO-14-21 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
