BTS716GNT
IC PWR SWITCH N-CHAN 1:1 DSO-20Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies BTS716GNT is a robust N-channel power switch designed for high-side load driving applications. This AEC-Q100 qualified device features four independent output channels, each capable of delivering up to 2.3A. It provides comprehensive fault protection including fixed current limiting, open load detection, over-temperature shutdown, and over-voltage protection. The BTS716GNT operates across a wide voltage range of 5.5V to 40V and offers a typical ON-resistance of 110mOhm. Its ON/OFF interface simplifies control, and a status flag provides output condition feedback. Housed in a 20-SOIC package (PG-DSO-20-32), this component is suitable for surface mounting. The BTS716GNT finds application in automotive systems, particularly in power distribution and body control modules.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:

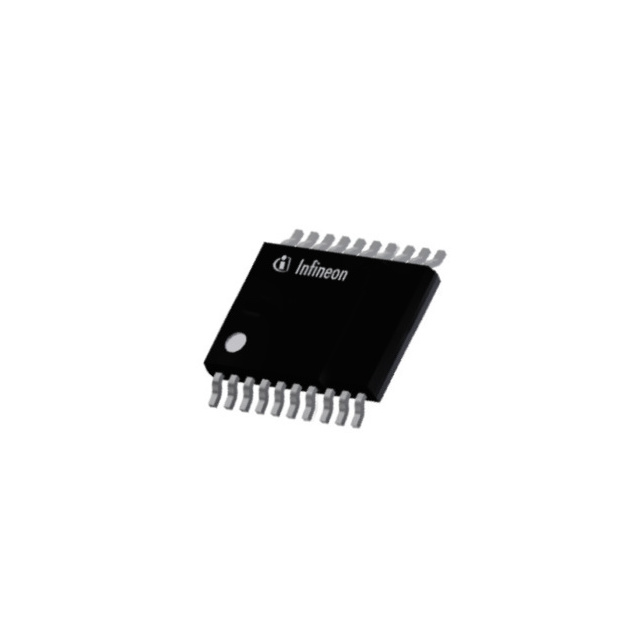

| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 110mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-DSO-20-32 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
