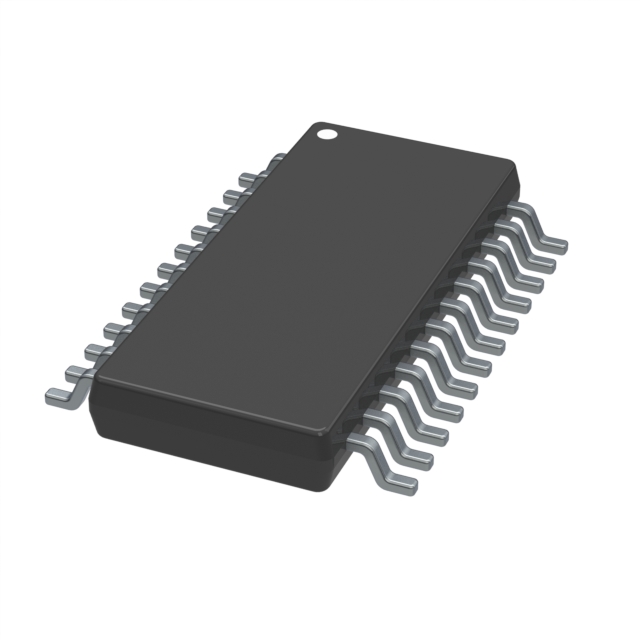

BTS700151ESPXUMA2
PROFET PG-TSDSO-24Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies BTS700151ESPXUMA2 is a high-side N-Channel power switch designed for demanding applications. This PROFET device, within the PG-TSDSO-24 package, offers a robust solution for power distribution. Key specifications include a maximum output current of 27.6A and a low on-resistance of 1.7mOhm (typical). The BTS700151ESPXUMA2 integrates comprehensive fault protection mechanisms, including fixed current limiting, open load detection, over-temperature shutdown, over-voltage protection, reverse battery compatibility, and undervoltage lockout (UVLO). This component features slew rate control for improved system stability. It is suitable for applications requiring a load voltage range of 4.1V to 28V and a supply voltage range of 4.1V to 28V. Industries such as automotive and industrial automation frequently utilize this type of power control. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | - |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 1.7mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4.1V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 4.1V ~ 28V |
| Current - Output (Max) | 27.6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TSDSO-24-32 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, Reverse Battery, UVLO |
