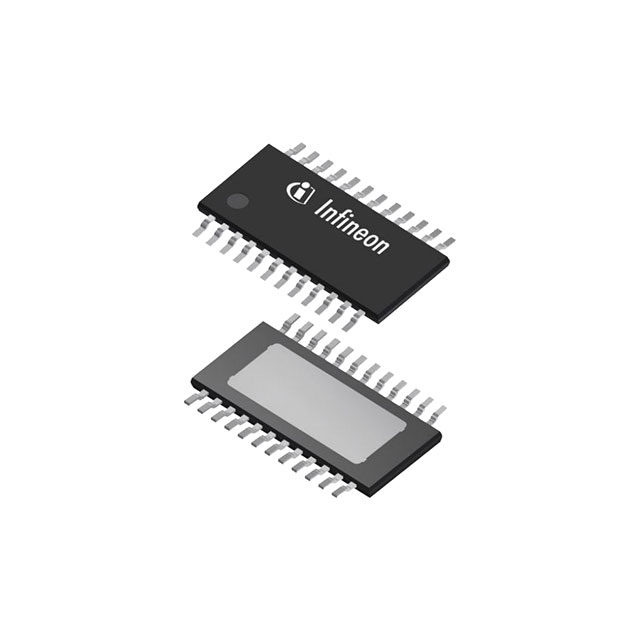

BTS700121ESPXUMA1
PROFET PG-TSDSO-24Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies PROFET® BTS700121ESPXUMA1 is a high-side power switch designed for demanding automotive applications. This single-channel N-channel device features a low on-resistance of 1.4mOhm (typ.) and supports a load voltage range of 6V to 18V, with a maximum output current capability of 31.3A. Integrated fault protection includes fixed current limiting, over-temperature shutdown, and undervoltage lockout (UVLO). The device is qualified to AEC-Q100 standards and housed in a PG-TSDSO-24 package, suitable for surface mounting. Its robust design makes it ideal for power distribution and load driving in automotive body control modules, powertrain systems, and advanced driver-assistance systems (ADAS). The BTS700121ESPXUMA1 operates across an extended temperature range of -40°C to 150°C (TJ).
Additional Information
Series: PROFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 1.4mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 31.3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TSDSO-24 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
