BTS621L1 E3230
IC PWR SWITCH N-CHAN 1:1 TO220-7Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

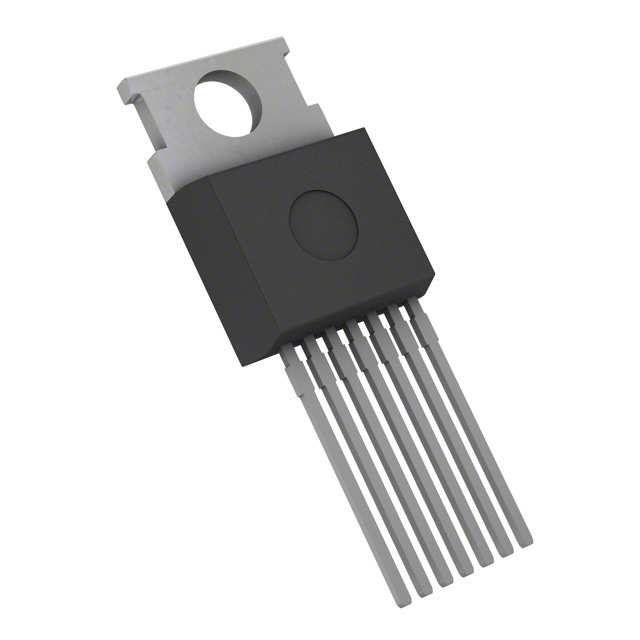

Infineon Technologies presents the BTS621L1-E3230, a PROFET® series N-channel power switch designed for high-side load driving applications. This component features two outputs, each capable of sourcing a maximum of 3.5A. Integrated fault protection mechanisms include fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. Enhanced operational features such as auto-restart and a status flag are also incorporated. The BTS621L1-E3230 utilizes an ON/OFF interface and is housed in a P-TO220-7-230 package, suitable for through-hole mounting. Its typical on-resistance is 80mOhm, and it operates across a load voltage range of 5V to 34V. This device is commonly employed in automotive and industrial automation systems requiring robust power distribution.
Additional Information
Series: PROFET®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | TO-220-7 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | P-TO220-7-230 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
