BTS612N1E3128ABUMA1
IC PWR SWITCH N-CHAN 1:1 TO263-7Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies PROFET® BTS612N1E3128ABUMA1 is a high-side N-channel power switch designed for general-purpose applications. This device offers a 1:1 input-to-output ratio and supports a load voltage range from 5V to 34V, with a maximum output current of 3.5A. Key fault protection features include current limiting, open load detection, over-temperature protection, over-voltage protection, and undervoltage lockout (UVLO). The BTS612N1E3128ABUMA1 incorporates auto-restart functionality and a status flag for operational feedback. Its output configuration is high-side, and it uses a parallel interface. The component is housed in a TO-263-7, D2PAK package, suitable for surface mounting. Typical on-resistance is 160mOhm. This component is widely utilized in automotive and industrial automation sectors.
Additional Information
Series: PROFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 98 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tape & Reel (TR) |

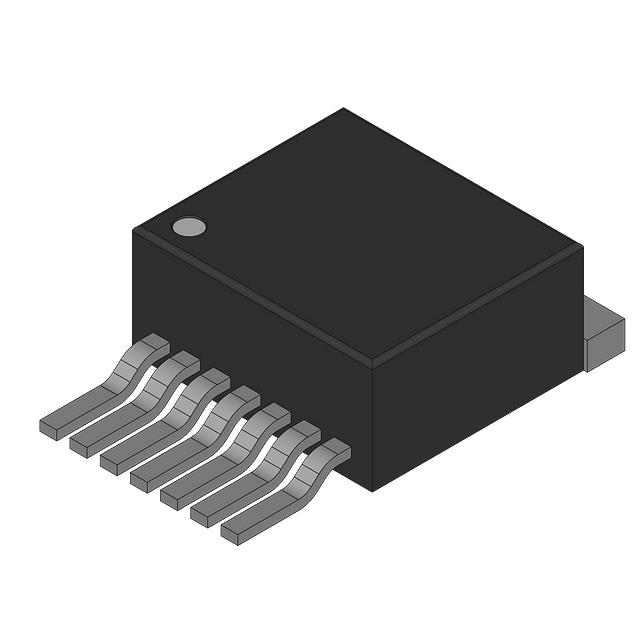

| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 160mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO263-7-2 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
