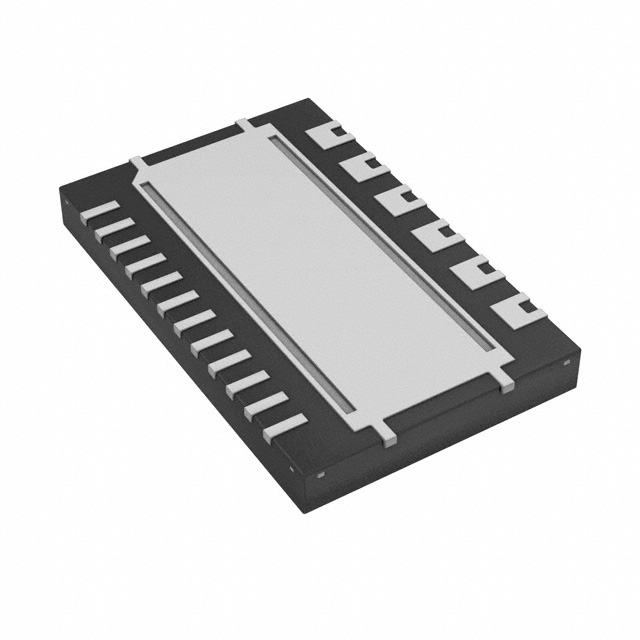

BTS54040LBFAUMA1
IC PWR SWITCH N-CHAN 1:2 TSON-24Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies BTS54040LBFAUMA1 is a highly integrated power switch designed for demanding automotive applications. This N-Channel power switch, part of the BTS family, features a 1:2 output configuration and a low Rds(on) of 39mOhm typical. It provides robust fault protection including fixed current limiting, over-temperature, and over-voltage protection. The device offers four high-side N-Channel outputs, each capable of sourcing up to 2A. Control is managed via an SPI interface. The BTS54040LBFAUMA1 operates across a load voltage range of 5.5V to 28V and a supply voltage range of 3.8V to 5.5V, with an extended junction temperature range of -40°C to 150°C. Supplied in a 24-PowerTDFN (PG-TSON-24-3) package on tape and reel, this component is suitable for advanced power distribution systems and advanced driver-assistance systems (ADAS).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerTDFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 39mOhm |
| Input Type | - |
| Voltage - Load | 5.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V |
| Current - Output (Max) | 2A |
| Ratio - Input:Output | 1:2 |
| Supplier Device Package | PG-TSON-24-3 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Grade | Automotive |
