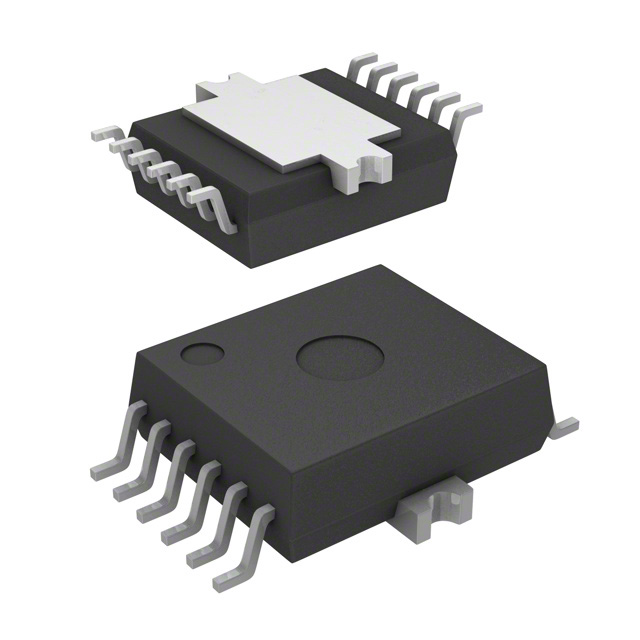

BTS5210LAUMA1
IC PWR SWITCH N-CHAN 1:1 DSO-12Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies BTS5210LAUMA1 is a dual-channel, high-side power switch designed for robust load control. This N-Channel device, housed in a PG-DSO-12-9 package, offers a 1:1 input-to-output ratio with a typical Rds On of 110mOhm. Each channel supports a continuous output current of up to 1.8A and operates within a load voltage range of 5.5V to 40V. Integrated fault protection includes fixed current limiting, open load detection, over-temperature shutdown, and over-voltage protection, ensuring system reliability. The BTS5210LAUMA1 utilizes a simple ON/OFF interface for control. Its versatility makes it suitable for automotive applications and industrial automation. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-BSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 110mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.8A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-DSO-12-9 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
