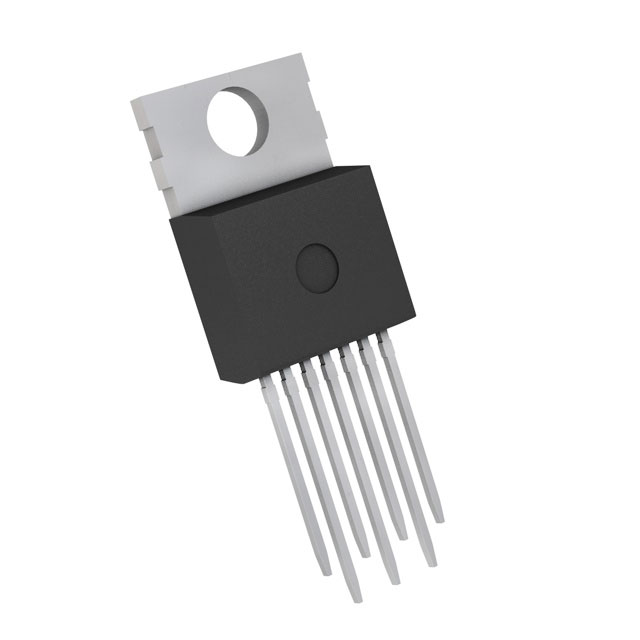

BTS500801TMBAKSA1
IC PWR SWITCH N-CHAN 1:1 TO220-7Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 9.5A PG-TO220-7-12
Additional Information
Series: PROFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | TO-220-7 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 7mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 38V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 9.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO220-7-12 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
