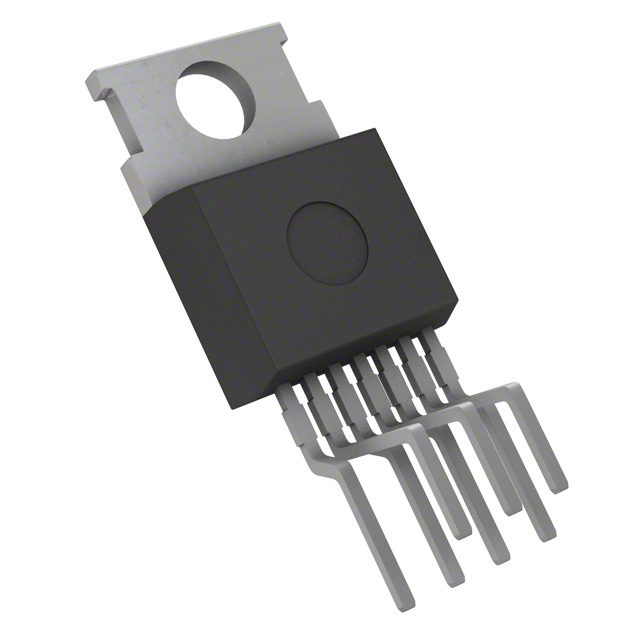

BTS500151TMAAKSA1
IC PWR SWITCH N-CHAN 1:1 TO220-7Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies BTS500151TMAAKSA1 is a high-side N-channel power switch designed for demanding automotive applications. This PG-TO220-7-232 packaged component offers robust protection features including fixed current limiting, over-temperature, and over-voltage protection. With a maximum output current of 33A and a load voltage range of 5.5V to 28V, it is suitable for power distribution and load driving in automotive control systems. The device operates over an extended temperature range of -40°C to 150°C and is AEC-Q100 qualified. Its simple ON/OFF interface and through-hole mounting facilitate integration into various automotive electronic architectures.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Not For New DesignsPackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 33A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO220-7-232 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
