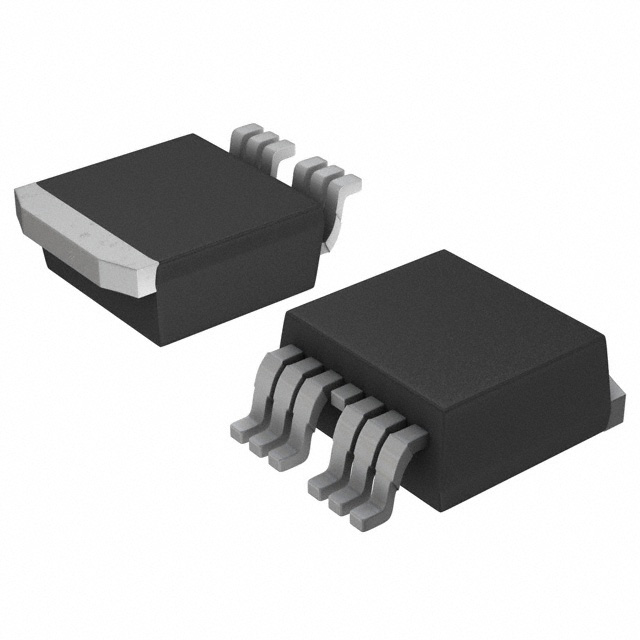

BTS500101TAEATMA1
IC PWR HIC-PROFET N-CH 1:1 TO263Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 48A P/PG-TO-263-7-10
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 1.6mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 8V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 48A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | P/PG-TO-263-7-10 |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
