BTS4880RNT
IC PWR SWITCH N-CHAN 1:1 DSO-36Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

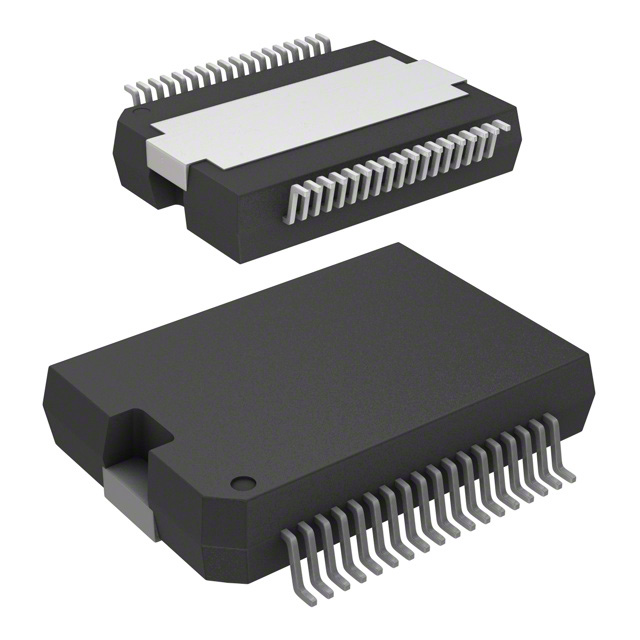

Infineon Technologies BTS4880RNT is an 8-channel, N-channel power switch designed for robust load management. This AEC-Q100 qualified device features fixed current limiting, over-temperature, and over-voltage fault protection, complemented by auto-restart functionality and a status flag for system monitoring. Operating within a voltage range of 11V to 45V, the BTS4880RNT offers a typical on-resistance of 150mOhm and a maximum output current of 625mA per channel. The device utilizes a simple ON/OFF interface and is housed in a 36-lead PG-DSO-36-26 package suitable for surface mounting. Its high-side output configuration and general-purpose switch type make it ideal for automotive applications requiring reliable power distribution and load driving.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSSOP (0.433"", 11.00mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 150mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 11V ~ 45V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 625mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-DSO-36-26 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
