BTS441RGNTMA1
IC PWR SWITCH N-CHAN 1:1 TO263-5Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies PROFET® series BTS441RGNTMA1 is a high-side N-channel power switch designed for automotive applications. This device features a 1:1 input-to-output ratio and a typical Rds(on) of 15mOhm, capable of handling up to 17A output current. Integrated fault protection includes fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. A status flag provides diagnostic feedback. The BTS441RGNTMA1 is AEC-Q100 qualified and packaged in a PG-TO263-5-2 (TO-263-5, D2PAK) surface-mount configuration, supplied on tape and reel. Operating temperature range is -40°C to 150°C.
Additional Information
Series: PROFET®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |

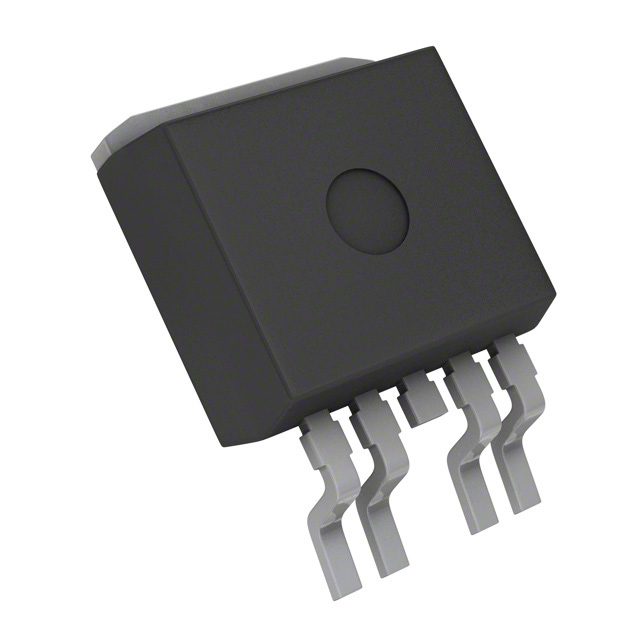

| Package / Case | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 15mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4.75V ~ 43V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 17A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO263-5-2 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
