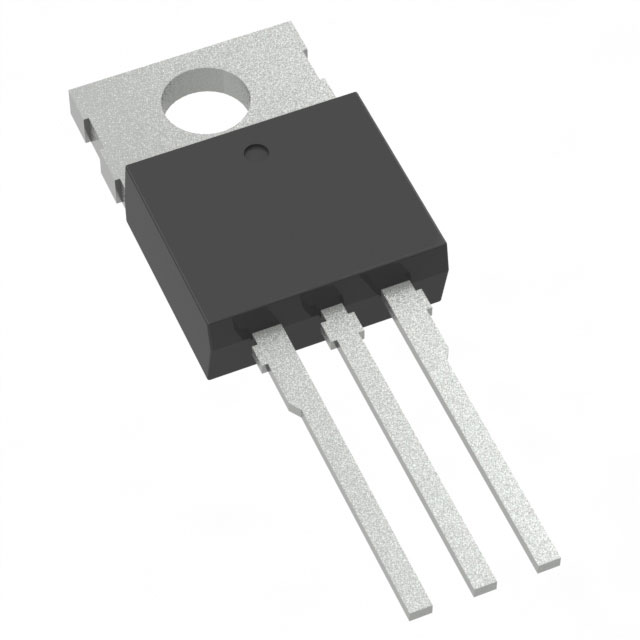

BTS141BKSA1
IC PWR SWITCH N-CHAN 1:1 TO220-3Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies BTS141BKSA1 is a high-side N-channel power switch designed for robust load control applications. This General Purpose switch features a fixed current limiting capability of 12A, providing effective protection against overcurrent conditions. Integrated over-temperature and over-voltage protection further enhance device reliability in demanding environments. The BTS141BKSA1 operates with a 60V maximum load voltage and offers a low on-resistance of 25mOhm (typical). Its TO-220-3 package facilitates through-hole mounting, and the ON/OFF interface allows for straightforward control. This component is commonly utilized in automotive, industrial automation, and power management systems where reliable power switching and protection are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 25mOhm |
| Input Type | - |
| Voltage - Load | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO220-3-1 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
