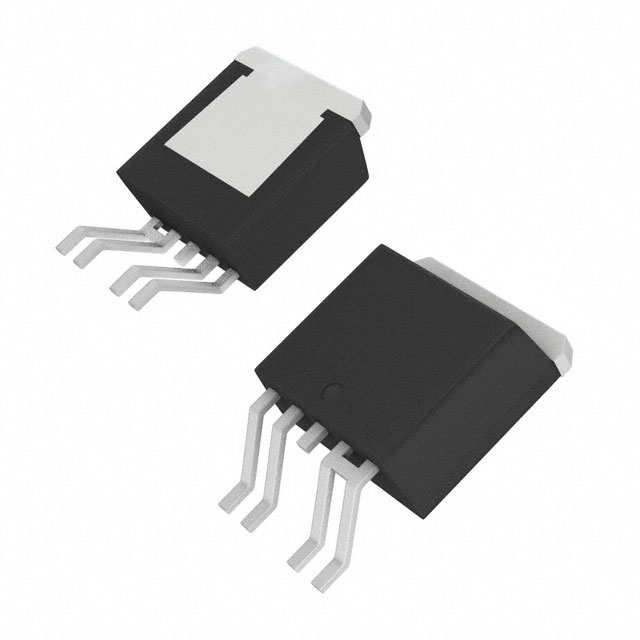

AUIR3320STRL
IC PWR SWITCH N-CHAN 1:1 D2PAKManufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies AUIR3320STRL is a robust N-Channel power switch designed for high-side load driving applications. This automotive-grade component, qualified to AEC-Q100 standards, features a low on-resistance of 3.3mOhm (typical) and can handle up to 45A output current. Integrated fault protection includes adjustable current limiting and over-temperature shutdown, ensuring system reliability. The AUIR3320STRL operates across a voltage load range of 6V to 26V and is packaged in a D2PAK (TO-263-5) surface-mount configuration, supplied on tape and reel. Its versatility makes it suitable for demanding automotive applications such as power distribution and motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-5, D2PAK (4 Leads + Tab), Variant |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 3.3mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 45A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | D2PAK |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Grade | Automotive |
| Qualification | AEC-Q100 |
