AUIPS7125R
IC PWR SWITCH N-CHAN 1:1 TO252-5Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

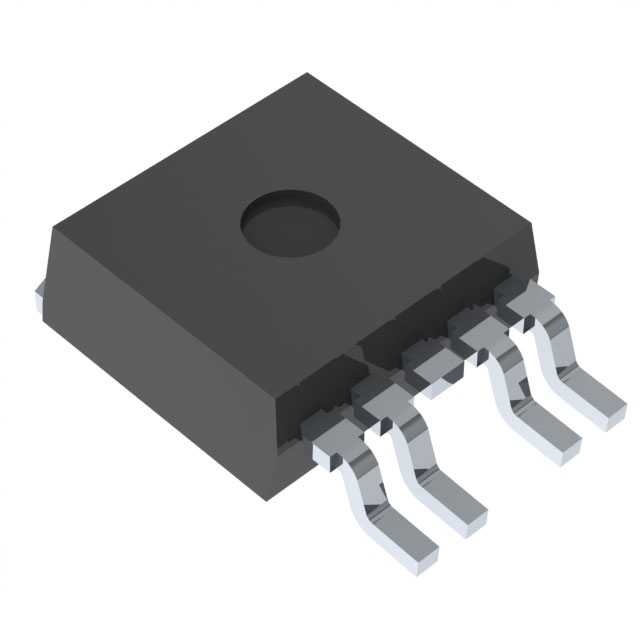

Infineon Technologies AUIPS7125R is a high-side N-channel power switch designed for demanding automotive applications. This AEC-Q100 qualified component features a 1:1 input-to-output ratio and a maximum output current of 3.8A. Integrated fault protection includes fixed current limiting and over-temperature shutdown, ensuring robust operation in challenging environments. The device is housed in a PG-TO252-5 package, suitable for surface mounting. Its low on-resistance of 24mOhm (typical) minimizes power dissipation. The AUIPS7125R is commonly employed in automotive power distribution systems and general-purpose switching applications where reliable load control is critical. Operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 24mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.8A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO252-5 |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Grade | Automotive |
| Qualification | AEC-Q100 |
