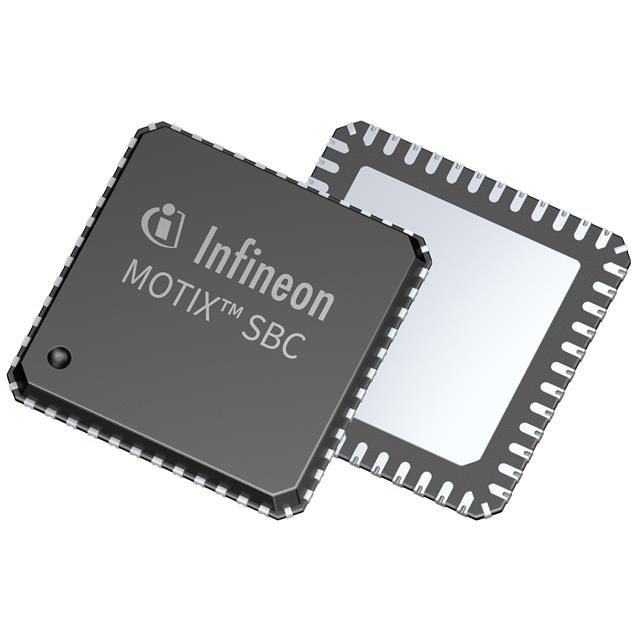

TLE95633QXXUMA1
BLDC_DRIVER_IC PG-VQFN-48Manufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies TLE95633QXXUMA1 is a fully integrated NMOS motor driver IC designed for Brushless DC (BLDC) applications. This device integrates control and power stages, offering a pre-driver for three half-bridge configurations. It features a 48-VFQFN exposed pad package (PG-VQFN-48-31) suitable for surface mounting and delivered on tape and reel (TR). The TLE95633QXXUMA1 supports both CAN and SPI interfaces for robust communication. Operating within a voltage range of 6V to 28V, it provides an output current of 250mA. Qualified to AEC-Q100 standards, this component is engineered for demanding automotive environments. Its advanced architecture makes it suitable for complex motor control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 250mA |
| Interface | CAN, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 6V ~ 28V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | 6V ~ 28V |
| Supplier Device Package | PG-VQFN-48-31 |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
