TLE95633QXJXUMA1
BLDC_DRIVER_ICManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More

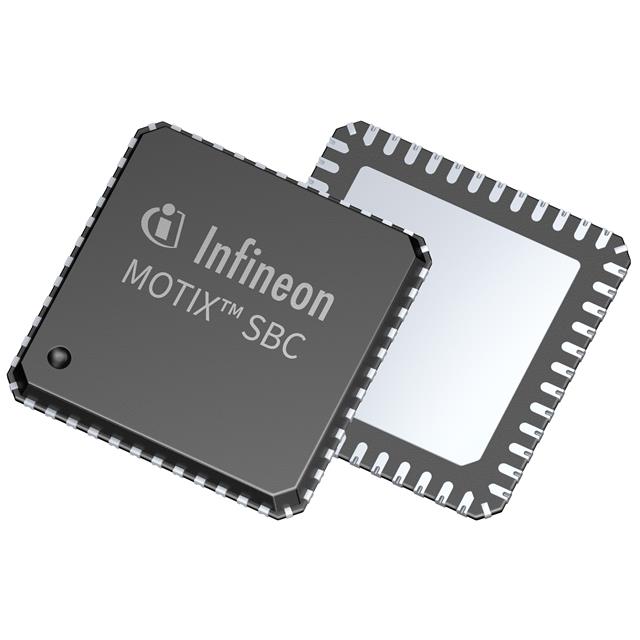

The Infineon Technologies TLE95633QXJXUMA1 is a multiphase motor driver featuring integrated control and power stages. This NMOS technology device is designed for Brushless DC (BLDC) and multiphase motor applications, operating within a voltage range of 3V to 28V for the supply and 6V to 28V for the load. The TLE95633QXJXUMA1 provides three pre-driver half-bridge outputs and utilizes CAN and SPI interfaces for communication. Its PG-VQFN-48-31 package with an exposed pad is suitable for surface mounting. Qualified to AEC-Q100 standards and operating across a temperature range of -40°C to 150°C (TJ), this component is engineered for demanding automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | CAN, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 3V ~ 28V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | 6V ~ 28V |
| Supplier Device Package | PG-VQFN-48-31 |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
