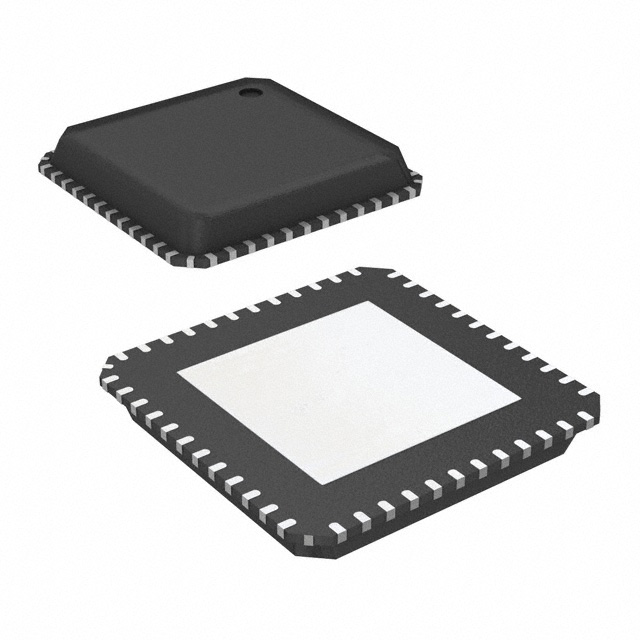

TLE9185QXV33XUMA1
BLDC_DRIVER_IC PG-VQFN-48Manufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies TLE9185QXV33XUMA1 is a multiphase motor driver designed for advanced automotive applications. This NMOS PWM controller utilizes a 48-VFQFN exposed pad package (PG-VQFN-48-29) for efficient thermal management. It features a configurable output stage comprising three half-bridge pre-drivers, capable of controlling Brushless DC (BLDC) and multiphase stepper motors. The device interfaces via PWM and SPI, offering precise speed control with an output current capability of 250mA. Operating within a junction temperature range of -40°C to 150°C, the TLE9185QXV33XUMA1 supports load voltages from 3V to 28V and supply voltages from 6V to 28V, making it suitable for demanding automotive powertrain and chassis control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Speed |
| Current - Output | 250mA |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 6V ~ 28V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | 3V ~ 28V |
| Supplier Device Package | PG-VQFN-48-29 |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
