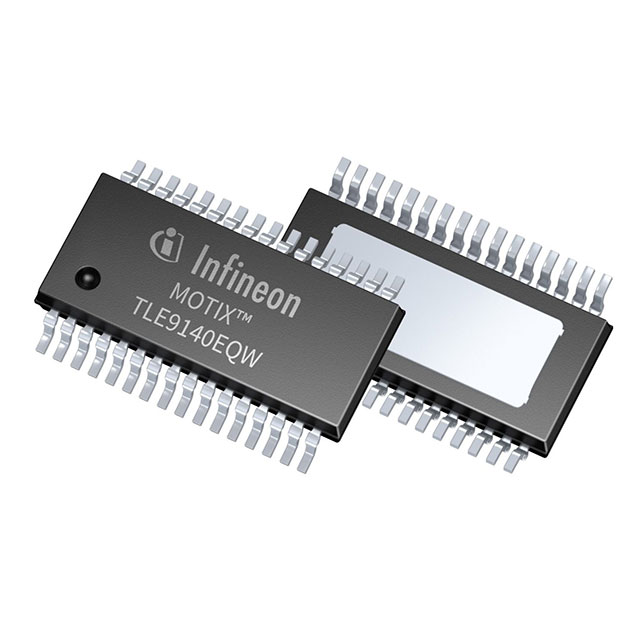

TLE9140EQWXUMA1
BLDC_DRIVER_ICManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies MOTIX™ TLE9140EQWXUMA1 is a multiphase motor driver IC designed for demanding automotive applications. This fully integrated component combines control and power stage functionality, featuring a 3-phase half-bridge output configuration. It utilizes Power MOSFET technology and operates over a wide voltage supply range of 8V to 75V, with an extended junction temperature range of -40°C to 175°C. The TLE9140EQWXUMA1 communicates via an SPI interface, facilitating precise control of Brushless DC (BLDC) and multiphase stepper motors. Packaged in a 32-TSSOP (PG-TSDSO-32-1) with an exposed pad, it is suitable for surface mounting and supplied on tape and reel. This device is engineered for applications requiring robust motor control solutions within the automotive sector.
Additional Information
Series: MOTIX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 89 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | SPI |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 8V ~ 75V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | PG-TSDSO-32-1 |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
Request a Quote
Clients Also Buy
TLE92108231QXXUMA1
IC GATE DRVR HALF-BRIDGE 48VFQFN

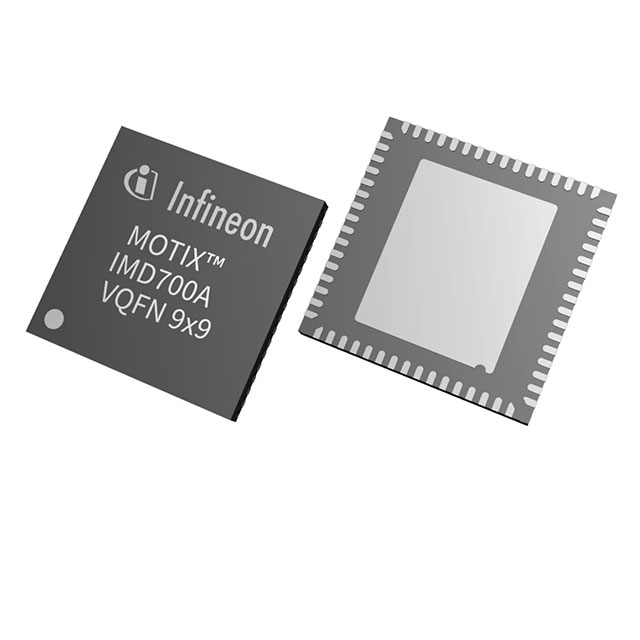

IMD700AQ064X128AAXUMA1
