TLE7209-2R
IC MOTOR DRIVER 5V-28V 20DSOManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More

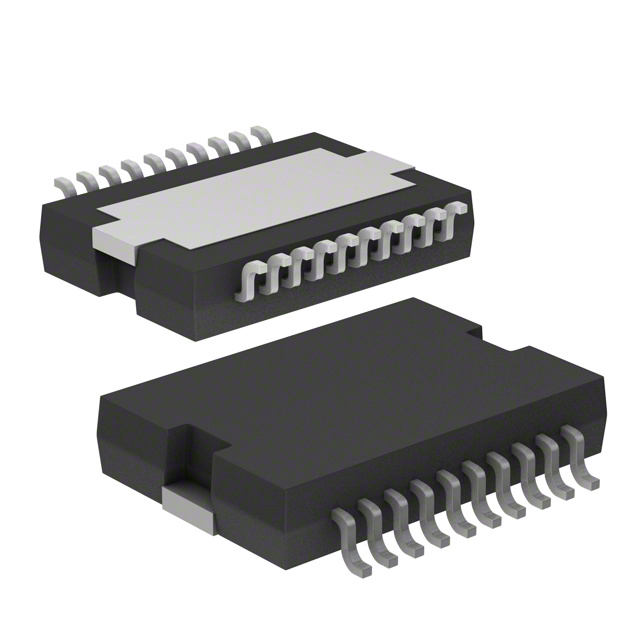

Infineon Technologies TLE7209-2R is a highly integrated motor driver IC designed for brushed DC applications. This component features a fully integrated control and power stage, providing robust motor control capabilities. The device communicates via a serial peripheral interface (SPI) and offers two half-bridge outputs, enabling flexible motor configurations. With a wide operating voltage range of 5V to 28V for both supply and load, the TLE7209-2R is suitable for demanding environments. Its output current capability is up to 5A, and it operates reliably across a temperature range of -40°C to 150°C (TJ). The TLE7209-2R is housed in a compact 20-DSO (PG-DSO-20-12) package, suitable for surface mounting. This component finds extensive use in automotive and industrial automation applications where precise and efficient motor control is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-PowerSOIC (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 5A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 5V ~ 28V |
| Applications | General Purpose |
| Technology | CMOS |
| Voltage - Load | 5V ~ 28V |
| Supplier Device Package | PG-DSO-20-12 |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
