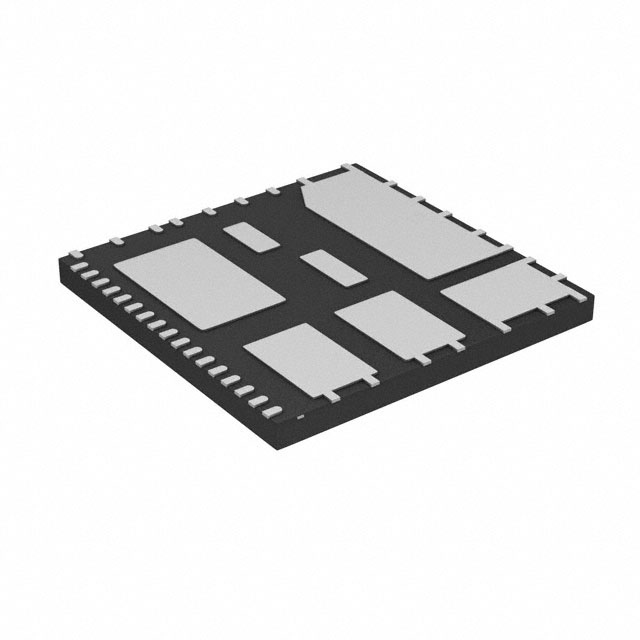

IRDM982-035MB
IC MTR DRIVER 13.5V-16.5V 40PQFNManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies IRDM982-035MB is a highly integrated motor driver featuring a Power MOSFET technology. This component is designed for demanding applications requiring precise control of AC synchronous motors. The device integrates both control logic and power stage, simplifying system design. It operates within a supply voltage range of 13.5V to 16.5V, with a load voltage capability spanning 100V to 450V. The output configuration utilizes three half-bridge stages, enabling efficient drive of brushless AC motors. The IRDM982-035MB is housed in a 40-PQFN (12x12) package, suitable for surface mounting. Its operating temperature range is -40°C to 150°C (TJ). This motor driver is utilized in various industrial automation and motion control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-PowerVQFN |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | 100V ~ 450V |
| Supplier Device Package | 40-PQFN (12x12) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | AC, Synchronous |
| Step Resolution | - |
