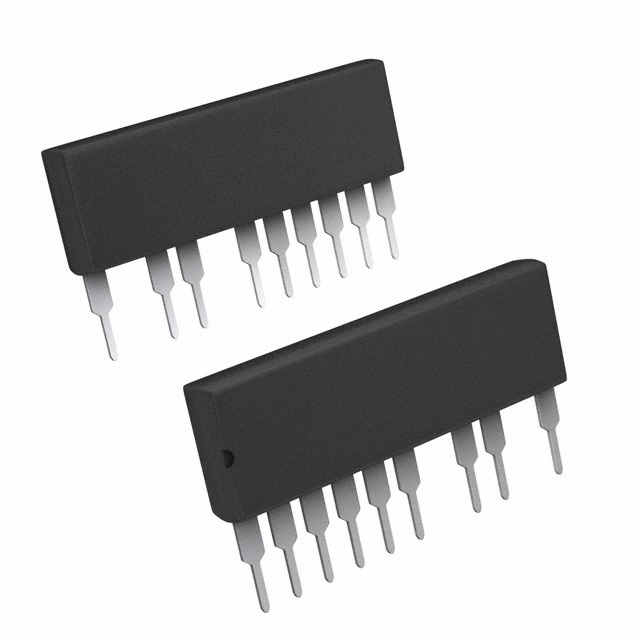

IR3101
IC GATE DRVR HALF-BRIDGE 11SIPManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies iMOTION™ IR3101 is an 11-SIP half-bridge gate driver designed for efficient motor control applications. This through-hole mounted component operates within a supply voltage range of 10V to 20V and features a junction temperature range of -40°C to 150°C. The 9-lead 11-SIP package provides robust thermal performance for demanding environments. The IR3101 is utilized in a variety of industrial automation and power management systems where precise control of motor speed and torque is critical. Its architecture facilitates high-frequency switching, contributing to reduced power loss and improved overall system efficiency.
Additional Information
Series: iMOTION™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 11-SIP, 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Supplier Device Package | 11-SIP |
Request a Quote
