IMM102T056MXUMA1
IMOTIONManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More

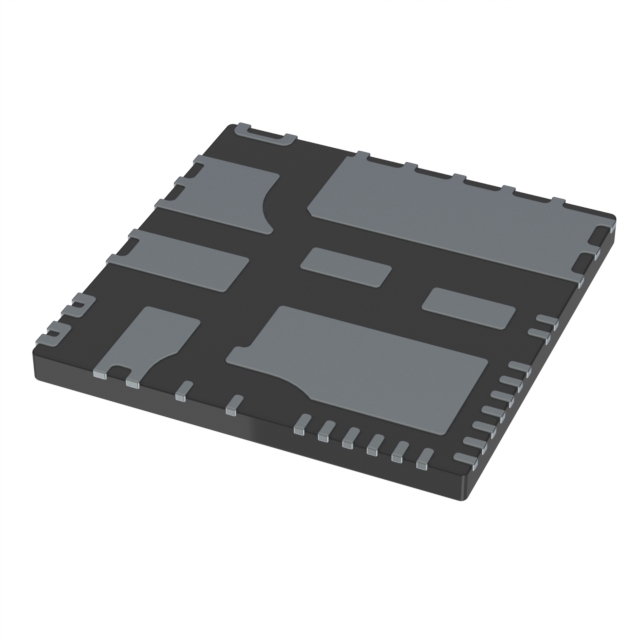

Infineon Technologies' iMOTION™ IMM102T056MXUMA1 is a bipolar motor driver featuring a 38-lead PG-IQFN-38-1 package for surface mounting. This component is designed for controlling Brushless DC (BLDC) and stepper motors, operating within a supply voltage range of 13.5V to 16.5V. It delivers an output current of 4A and utilizes PWM interface for precise control. The output configuration includes three half-bridge drivers. Manufactured with Power MOSFET technology, this device is suitable for general-purpose applications across various industries, including home appliances, industrial automation, and automotive systems. The operating temperature range is -40°C to 115°C (TJ), and it is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: iMOTION™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 38-PowerVQFN |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 4A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 115°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | PG-IQFN-38-1 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
