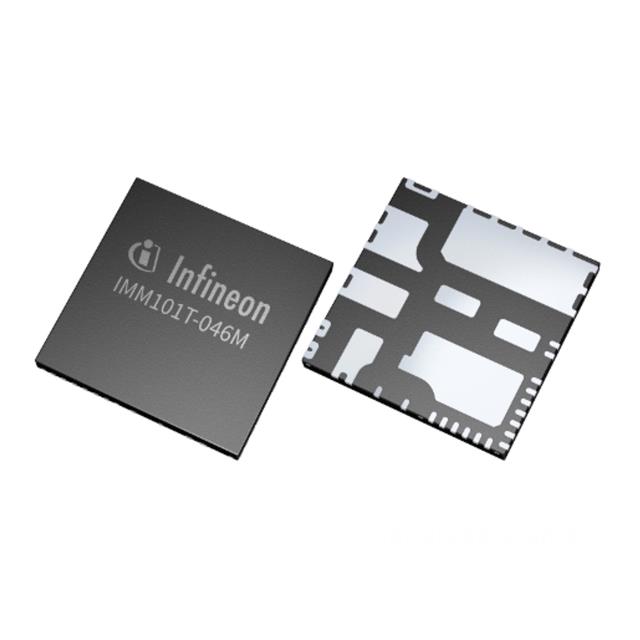

IMM101T046MXUMA1
IMOTIONManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies' iMOTION™ IMM101T046MXUMA1 is a high-performance Bipolar Motor Driver featuring a Power MOSFET technology. This electronic component, housed in a 38-PowerVQFN (PG-IQFN-38-1) package, is designed for efficient control of Brushless DC (BLDC) and Stepper motors. The device operates with a supply voltage range of 13.5V to 16.5V and delivers an output current of 4A. Its functionality is driven by a PWM interface, enabling precise speed and position control. The output configuration includes three Half Bridges, facilitating versatile motor drive topologies. Suitable for general-purpose applications, this component finds utility in industries such as industrial automation, consumer electronics, and electric vehicles. The IMM101T046MXUMA1 is supplied in Tape & Reel (TR) packaging and operates within an ambient temperature range of -40°C to 115°C.
Additional Information
Series: iMOTION™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 38-PowerVQFN |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 4A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 115°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | PG-IQFN-38-1 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
