IMI111T046HXUMA1
IMOTIONManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More

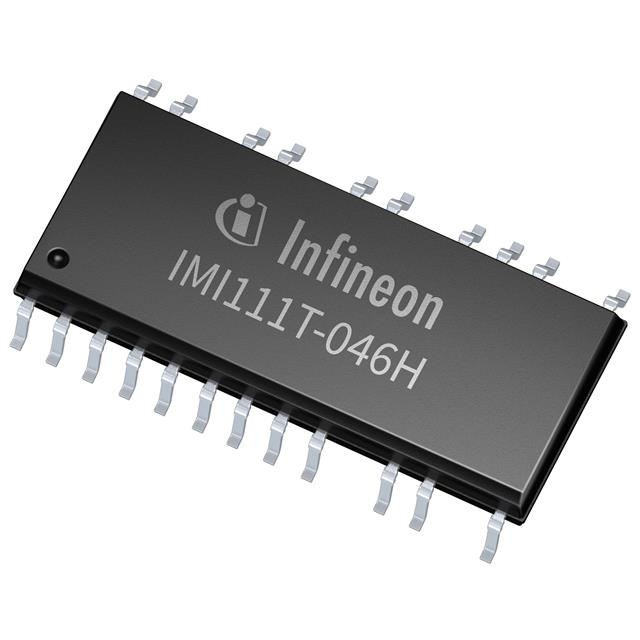

Infineon Technologies iMOTION™ IMI111T046HXUMA1 is a multiphase motor driver featuring a fully integrated control and power stage. This IGBT-based component utilizes Analog, PWM, and UART interfaces for precise control of AC synchronous motors. The device offers a robust output configuration with three half-bridges, capable of handling up to 4A of current and operating with load voltages up to 600V. Its supply voltage range accommodates both 3V to 5.5V and 13.5V to 16.5V. Packaged in a 22-SOIC (PG-DSO-22-1) surface mount format, the IMI111T046HXUMA1 is suitable for demanding applications such as fan motor drivers across various industrial sectors. It operates within an ambient temperature range of -40°C to 105°C and is supplied on a tape and reel.
Additional Information
Series: iMOTION™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 22-SOIC (0.295"", 7.50mm Width), 22 Leads |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4A |
| Interface | Analog, PWM, UART |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 3V ~ 5.5V, 13.5V ~ 16.5V |
| Applications | Fan Motor Driver |
| Technology | IGBT |
| Voltage - Load | 600V |
| Supplier Device Package | PG-DSO-22-1 |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | AC, Synchronous |
| Step Resolution | - |
