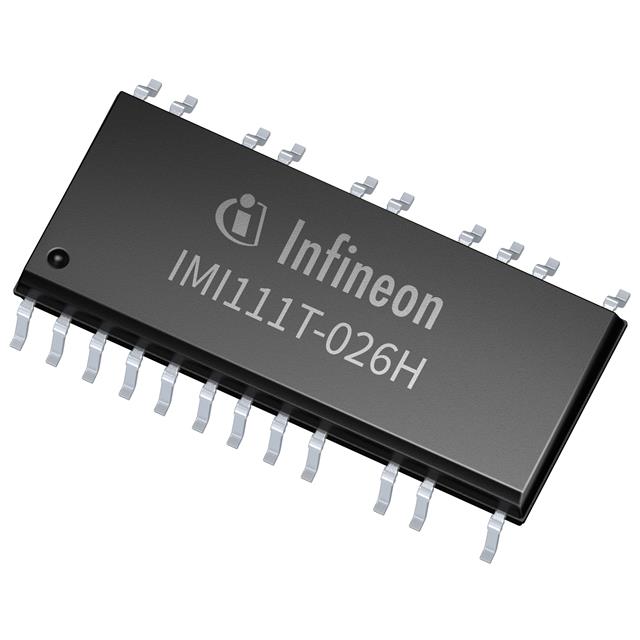

IMI111T026HXUMA1
IMOTIONManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies iMOTION™ series IMI111T026HXUMA1 is a multiphase motor driver designed for demanding applications. This fully integrated component combines control and power stage functionality, featuring IGBT technology for robust operation. Its output configuration includes three half-bridge stages capable of driving AC synchronous motors. The device supports analog, PWM, and UART interfaces for flexible control and communication. With a load voltage rating of 600V and an output current of 2A, it is suitable for applications such as fan motor drivers. The IMI111T026HXUMA1 is presented in a PG-DSO-22-1 package, a 22-SOIC format, for surface mounting. It operates within an ambient temperature range of -40°C to 105°C.
Additional Information
Series: iMOTION™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 22-SOIC (0.295"", 7.50mm Width), 22 Leads |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | Analog, PWM, UART |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 3V ~ 5.5V, 13.5V ~ 16.5V |
| Applications | Fan Motor Driver |
| Technology | IGBT |
| Voltage - Load | 600V |
| Supplier Device Package | PG-DSO-22-1 |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | AC, Synchronous |
| Step Resolution | - |
