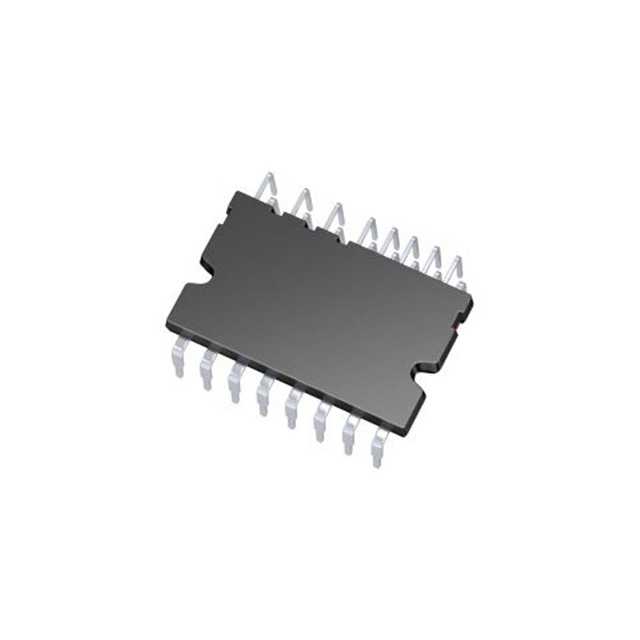

IM512L6AXKMA1
CIPOS MINI COOLMOSManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies CIPOS™ IM512L6AXKMA1, a Multiphase Motor Driver Power MOSFET with PWM interface, is designed for efficient motor control applications. This component, part of the CIPOS MINI COOLMOS family, features a 24-DIP Module (1.028", 26.10mm) package for through-hole mounting. It integrates two Half Bridge output configurations, supporting multiphase stepper motor types. With an output current capability of 10A and a supply voltage range of 14V to 18.5V, it is suitable for general-purpose applications. The operating temperature range is -40°C to 125°C. This device is commonly utilized in industrial automation and automotive sectors where robust motor drive solutions are required.
Additional Information
Series: CIPOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-PowerDIP Module (1.028"", 26.10mm) |
| Mounting Type | Through Hole |
| Function | Driver |
| Current - Output | 10A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 14V ~ 18.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 24-DIP |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | - |
| Step Resolution | - |
| Grade | - |
| Qualification | - |
