IM231L6S1BAUMA1
CIPOS MICROManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More

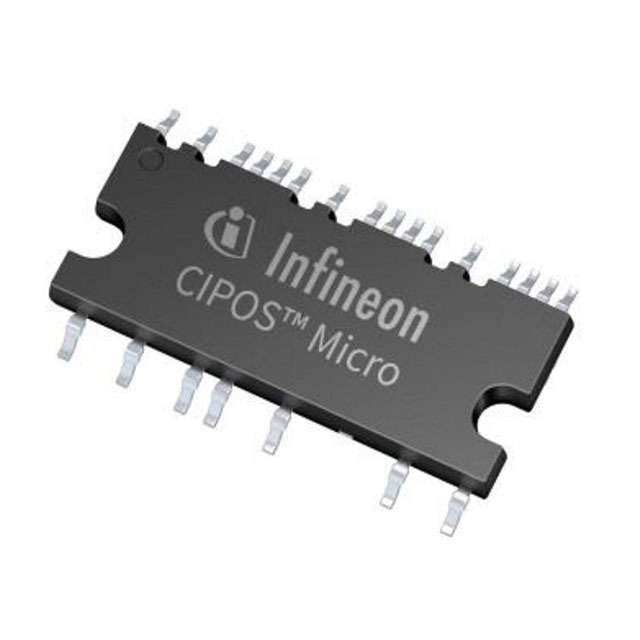

Infineon Technologies IM231L6S1BAUMA1, a CIPOS™ IPM series component, is a multiphase motor driver featuring IGBT technology. This 23-SOP packaged device is designed for surface mount applications and delivers an output current of 6A. It provides a half-bridge output configuration with three such bridges. The operating temperature range is -40°C to 150°C (TJ). This component is suitable for driving AC, DC, and stepper motors, with specific application in fan motor drivers. The supply voltage range is 13.5V to 16.5V, and the load voltage is rated at 450V. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: CIPOS™ IPMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 6A |
| Interface | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Applications | Fan Motor Driver |
| Technology | IGBT |
| Voltage - Load | 450V |
| Supplier Device Package | 23-SOP |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | - |
| Step Resolution | - |
