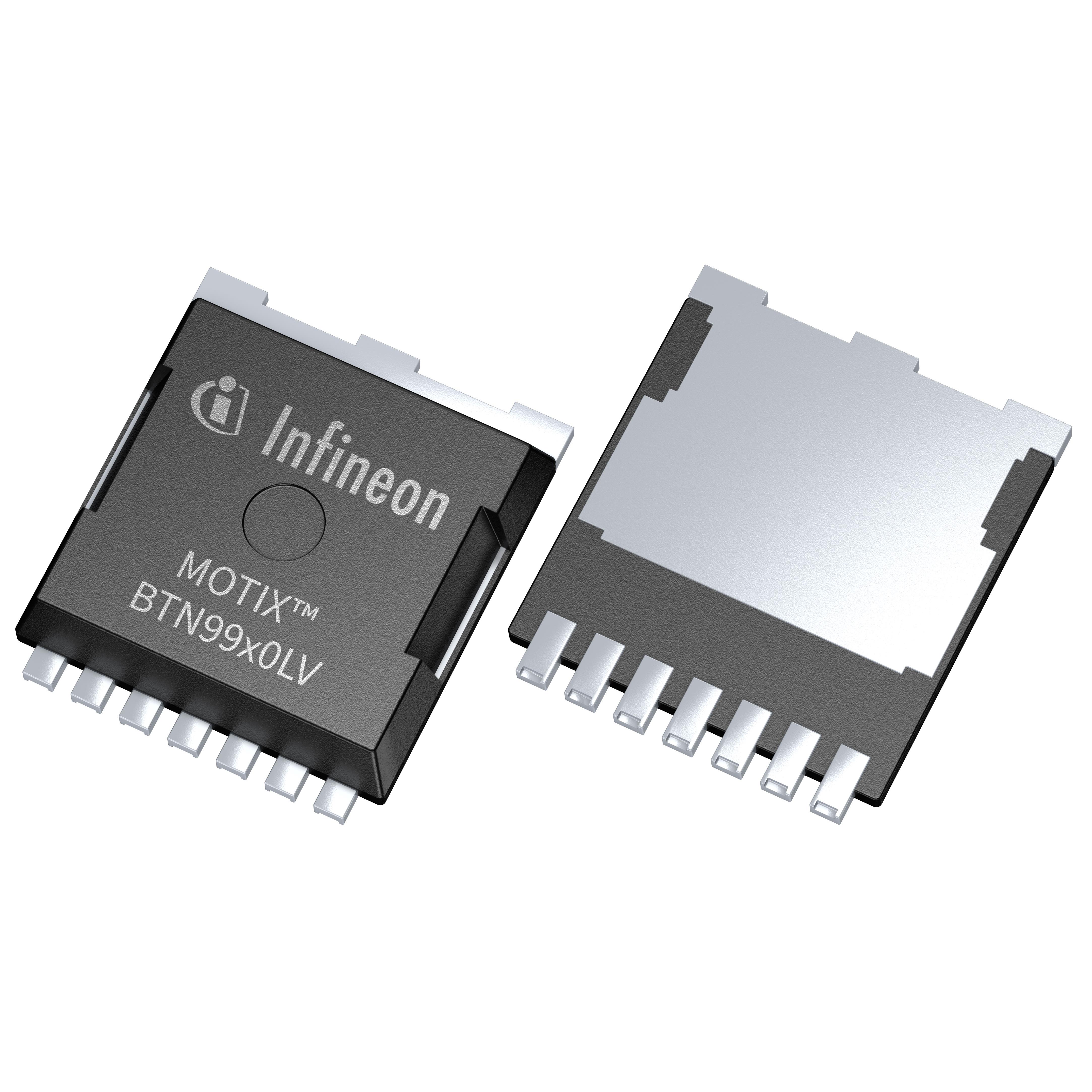

BTN9960LVAUMA1
DC_MOTOR_CONTROLManufacturer: Infineon Technologies
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Infineon Technologies MOTIX™ BTN9960LVAUMA1 is a bipolar motor driver featuring a fully integrated control and power stage. This DMOS technology device offers a half-bridge output configuration and is designed for surface mount applications using the PG-HSOF-7-1 package. It supports PWM interface for precise control of brushed DC and bipolar stepper motors. The operating voltage range for both load and supply is 4.5V to 40V, with an extended junction temperature range of -40°C to 150°C. This robust component is commonly utilized in general-purpose applications across various industries requiring efficient motor control.
Additional Information
Series: MOTIX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 7-PowerSFN |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 40V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 4.5V ~ 40V |
| Supplier Device Package | PG-HSOF-7-1 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
