XMC7100-F144K2112AA
IC MCU 32BIT 2.11MB 144LQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies XMC7000 series microcontroller, part number XMC7100-F144K2112AA. This 32-bit dual-core device features ARM Cortex-M0+ and ARM Cortex-M7 processors, operating at frequencies of 100MHz and 250MHz respectively. It offers 2.112M x 8 of FLASH program memory and 384K x 8 of RAM, with an additional 128K x 8 of EEPROM. Connectivity options include CANbus, Ethernet, I2C, SPI, and UART/USART. Peripherals include DMA, Crypto (AES, SHA), PWM, and a WDT. The device supports 52 analog inputs with 12-bit SAR data converters. Packaged in a 144-TEQFP (20x20) surface-mount case, it operates within a temperature range of -40°C to 125°C (TA). This microcontroller is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: XMC7000RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 100MHz, 250MHz |
| Program Memory Size | 2.112M x 8 |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M7 |
| Data Converters | A/D 52x12b SAR |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, Ethernet, FIFO, I2C, IrDA, MMC/SD/SDIO, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, Crypto - AES, DMA, LVD, POR, PWM, SHA, Temp Sensor, TRNG, WDT |
| Supplier Device Package | 144-TEQFP (20x20) |
| Number of I/O | 116 |
Request a Quote
Clients Also Buy
XMC7100D-F176K4160AA
IC MCU 32BT 4.063MB FLSH 176QFP

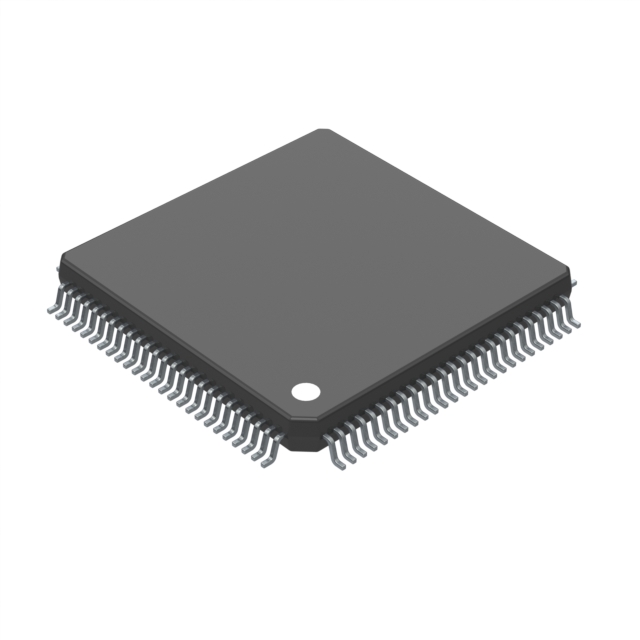

XMC7100-F100K4160AA
