XC164CS16F40FBBFXQMA1
IC MCU 16BIT 128KB FLASH 100TQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

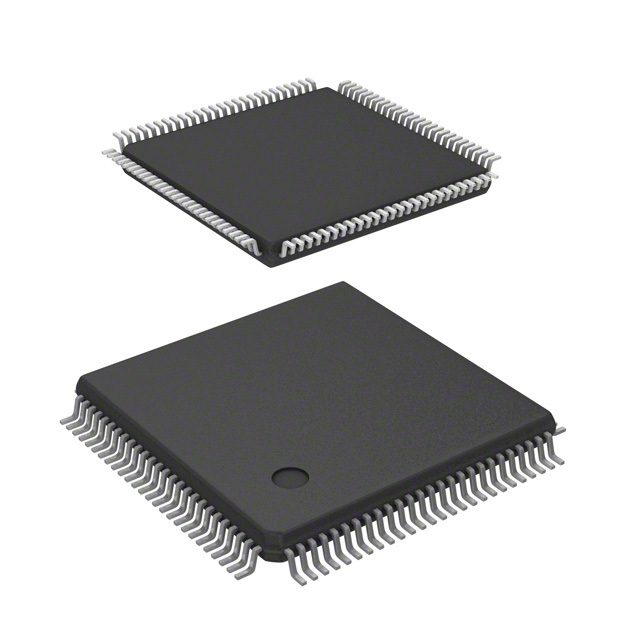

Infineon Technologies XC16x Series microcontroller, part number XC164CS16F40FBBFXQMA1, features a 16-bit C166SV2 core operating at 40MHz. This device offers 128KB of FLASH program memory and 8KB of RAM. Connectivity options include CANbus, EBI/EMI, SPI, and UART/USART. It integrates a 14-channel 8/10-bit Analog-to-Digital converter and peripherals such as PWM and WDT. The microcontroller is housed in a 100-TQFP package and supports surface mount installation. Designed for applications requiring robust control and communication, it operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2.35V and 2.7V. This component is commonly utilized in automotive, industrial automation, and power control systems.
Additional Information
Series: XC16xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | C166SV2 |
| Data Converters | A/D 14x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 2.7V |
| Connectivity | CANbus, EBI/EMI, SPI, UART/USART |
| Peripherals | PWM, WDT |
| Supplier Device Package | PG-TQFP-100-5 |
| Number of I/O | 79 |
| Programmable | Not Verified |
