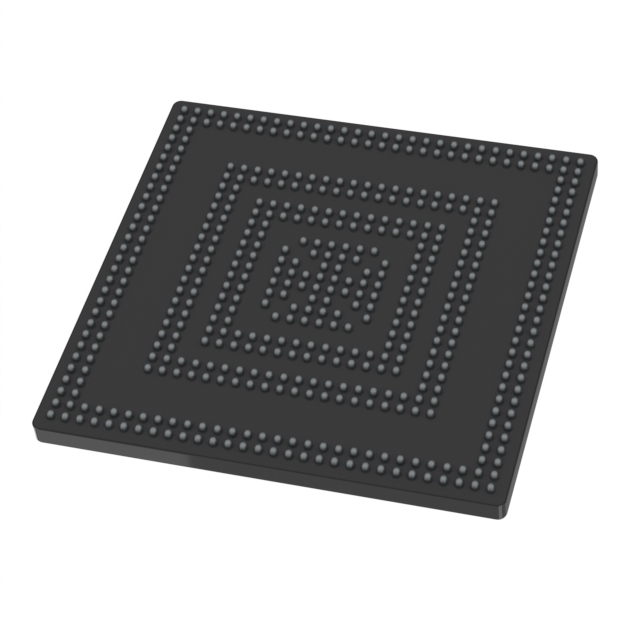

TC399XP256F300SBDLXUMA1
IC MCU 32BIT 16MB FLASH 516LFBGAManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies AURIX™ TC399XP256F300SBDLXUMA1 is a 32-bit, 6-core TriCore™ microcontroller operating at 300MHz. This device features 16MB of FLASH program memory and 2.75MB of RAM. Connectivity options include ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI, QSPI, and SENT. Integrated data converters include 100 SAR and Sigma-Delta ADCs, along with 1M x 8 EEPROM. Peripherals such as DMA, I2S, LVDS, PWM, and WDT are incorporated. The TC399XP256F300SBDLXUMA1 is supplied in a 516-LFBGA package, suitable for surface mounting. It operates within a temperature range of -40°C to 150°C (TA) and requires a supply voltage of 2.97V to 5.5V. This component is commonly found in automotive and industrial applications.
Additional Information
Series: AURIX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 516-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 300MHz |
| Program Memory Size | 16MB (16M x 8) |
| RAM Size | 2.75M x 8 |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1M x 8 |
| Core Processor | TriCore™ |
| Data Converters | A/D 100 SAR, Sigma-Delta |
| Core Size | 32-Bit 6-Core |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 5.5V |
| Connectivity | ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI, QSPI, SENT |
| Peripherals | DMA, I2S, LVDS, PWM, WDT |
| Supplier Device Package | PG-LFBGA-516-10 |
| Programmable | Not Verified |
