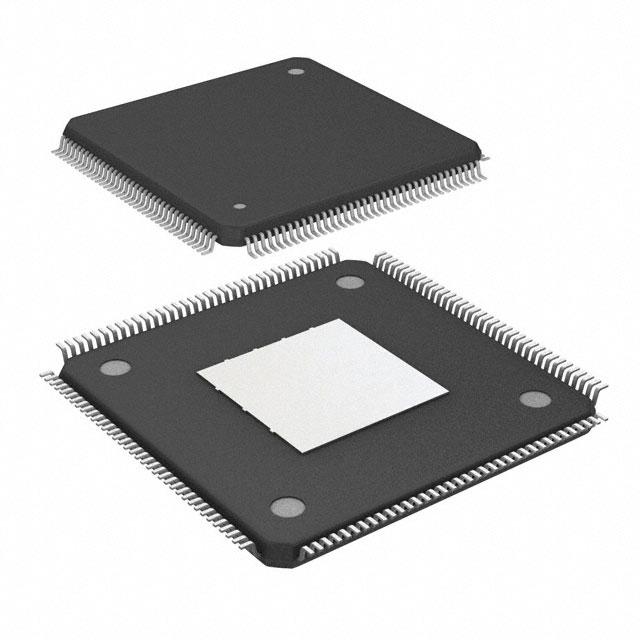

TC264DA40F200WBBKXUMA1
IC MCU 32BIT 2.5MB FLASH 144LQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies AURIX™ TC264DA40F200WBBKXUMA1 is a 32-bit dual-core microcontroller featuring the TriCore™ architecture. This component operates at 200MHz and offers 2.5MB of FLASH program memory, complemented by 752KB of RAM and 96KB of EEPROM. It includes advanced peripherals such as DMA and WDT, along with a rich set of connectivity options including ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI5, QSPI, and SENT. The integrated data converters consist of 40 analog inputs with 12-bit resolution and four Sigma-Delta converters. Housed in a 144-LQFP exposed pad package suitable for surface mounting, this device operates across a temperature range of -40°C to 125°C. It is commonly employed in automotive applications such as powertrain control, chassis systems, and advanced driver-assistance systems (ADAS).
Additional Information
Series: AURIX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 98 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 144-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | 2.5MB (2.5M x 8) |
| RAM Size | 752K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 96K x 8 |
| Core Processor | TriCore™ |
| Data Converters | A/D 40x12b, 4 x Sigma-Delta |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V |
| Connectivity | ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI5, QSPI, SENT |
| Peripherals | DMA, WDT |
| Supplier Device Package | PG-LQFP-144-22 |
| Number of I/O | 88 |
| Programmable | Not Verified |
