TC234LP32F200FABKXUMA1
IC MCU 32BIT 2MB FLASH 144TQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

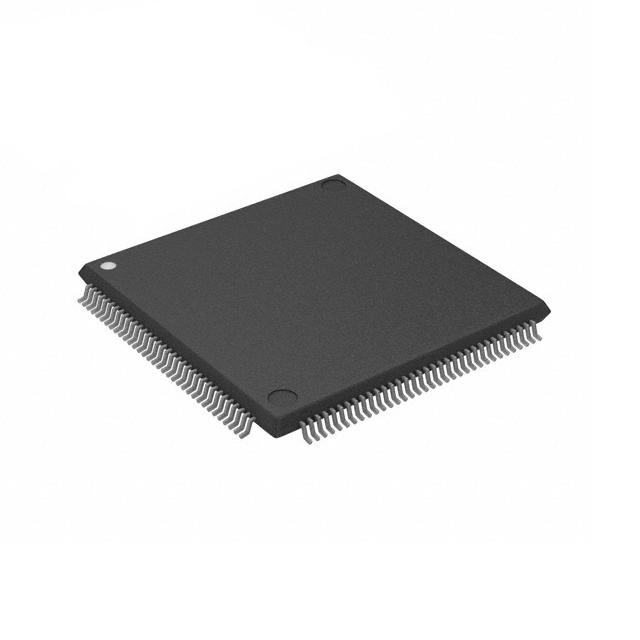

Infineon Technologies AURIX™ TC234LP32F200FABKXUMA1 is a 32-bit single-core TriCore™ microcontroller. This device features a 200MHz clock speed and 2MB of FLASH program memory, complemented by 192KB of RAM and 128KB of EEPROM. The TC234LP32F200FABKXUMA1 supports multiple communication protocols including CANbus, FlexRay, LINbus, and QSPI, and includes peripherals such as DMA and WDT. It offers 120 I/O pins and 24 channels of 12-bit A/D conversion. This component is housed in a 144-pin PG-TQFP-144-2 package suitable for surface mounting and operates within a temperature range of -40°C to 125°C. The AURIX™ series is prevalent in automotive applications, including powertrain control and safety systems.
Additional Information
Series: AURIX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | TriCore™ |
| Data Converters | A/D 24x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3.3V |
| Connectivity | CANbus, FlexRay, LINbus, QSPI |
| Peripherals | DMA, WDT |
| Supplier Device Package | PG-TQFP-144-2 |
| Number of I/O | 120 |
| Programmable | Not Verified |
