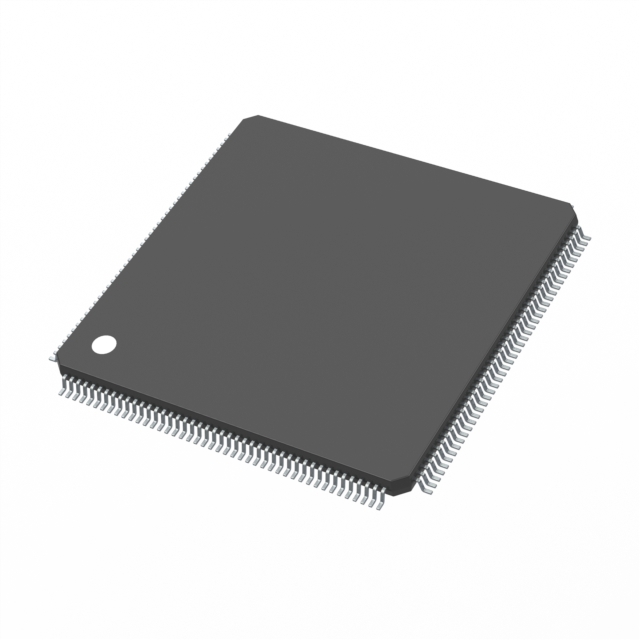

TC1782N320F180HRBAKXUMA2
IC MCU 32BIT 2.5MB FLASH 176LQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies TC17xx series microcontroller, part number TC1782N320F180HRBAKXUMA2, features a 32-bit TriCore™ single-core processor running at 180MHz. This device offers 2.5MB of FLASH program memory and 176KB of RAM, along with 128KB of EEPROM. It supports various communication protocols including ASC, CANbus, FlexRay, MLI, MSC, and SSC, and includes peripherals such as DMA, POR, and WDT. The microcontroller incorporates 36 channels of 10-bit/12-bit A/D converters and provides 86 I/O pins. The TC1782N320F180HRBAKXUMA2 is packaged in a 176-LQFP (PG-LQFP-176-20) for surface mounting and operates within a temperature range of -40°C to 125°C. Its voltage supply range is 1.17V to 3.63V. This component is commonly found in automotive and industrial control applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: TC17xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 2.5MB (2.5M x 8) |
| RAM Size | 176K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | TriCore™ |
| Data Converters | A/D 36x10b/12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.17V ~ 3.63V |
| Connectivity | ASC, CANbus, FlexRay, MLI, MSC, SSC |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | PG-LQFP-176-20 |
| Number of I/O | 86 |
| Programmable | Not Verified |
