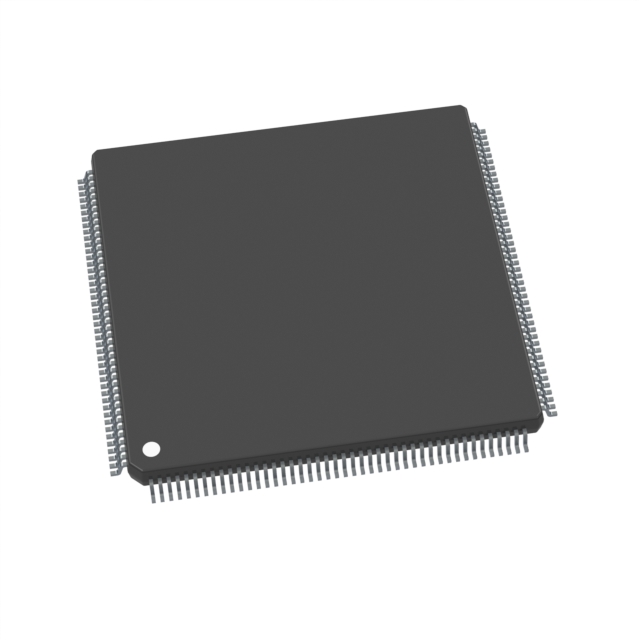

S6J332EJBESE20000
TRAVEO-40NMManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies' S6J332EJBESE20000 is a 32-bit ARM Cortex-R5F microcontroller from the Traveo™ T1G series. This component operates at a 240MHz core speed and features 4.0625MB of FLASH program memory. Its architecture includes 544KB of RAM and 112KB of EEPROM. Key connectivity options include CANbus, CSIO, I2C, LINbus, and UART/USART. The device is equipped with 48x12-bit Analog-to-Digital converters and offers 150 I/O pins. Peripherals include DMA, I2S, LVD, POR, PWM, and WDT. Housed in a 176-TEQFP (24x24) package for surface mounting, it operates within a temperature range of -40°C to 105°C. This Traveo™ T1G series microcontroller is designed for automotive applications, including body control modules and instrument clusters.
Additional Information
Series: Traveo™ T1GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 240MHz |
| Program Memory Size | 4.0625MB (4.0625M x 8) |
| RAM Size | 544K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 112K x 8 |
| Core Processor | ARM® Cortex®-R5F |
| Data Converters | A/D 48x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, CSIO, I2C, LINbus, UART/USART |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 176-TEQFP (24x24) |
| Number of I/O | 150 |
