S6J323CLUPSC20000
TRAVEO-55NMManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

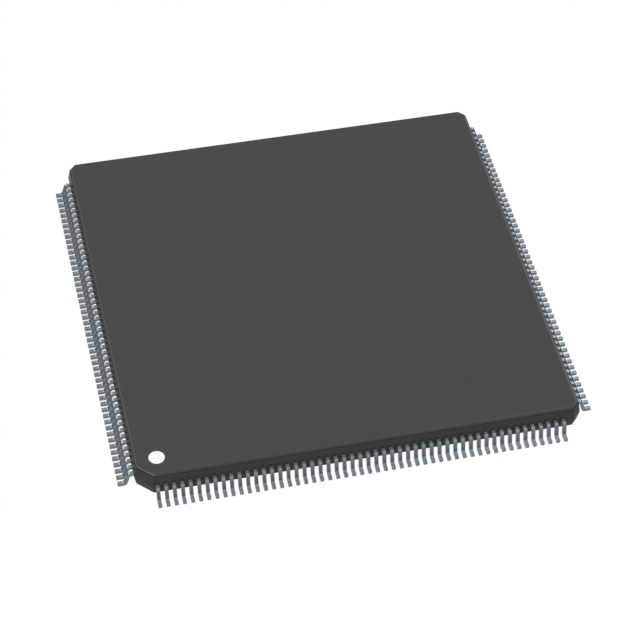

Infineon Technologies Traveo S6J3200 Series S6J323CLUPSC20000 is a 32-bit ARM Cortex-R5F microcontroller operating at 240MHz. This device features 2.0625MB of FLASH program memory and 2.25K x 8 RAM. Connectivity options include CANbus, CSIO, Ethernet, I2C, LINbus, SPI, and UART/USART. The S6J323CLUPSC20000 is housed in a 216-TEQFP (24x24) exposed pad package suitable for surface mounting. It offers 128 I/O lines and includes peripherals such as DMA, I2S, LCD, LVD, POR, PWM, and WDT. Data conversion capabilities are provided by 50x12b ADCs. The operating temperature range is -40°C to 105°C (TA), with a supply voltage of 1.15V to 5.5V. This component is utilized in automotive applications.
Additional Information
Series: Traveo S6J3200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 216-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 240MHz |
| Program Memory Size | 2.0625MB (2.0625M x 8) |
| RAM Size | 2.25K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-R5F |
| Data Converters | A/D 50x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.15V ~ 5.5V |
| Connectivity | CANbus, CSIO, Ethernet, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 216-TEQFP (24x24) |
| Number of I/O | 128 |
