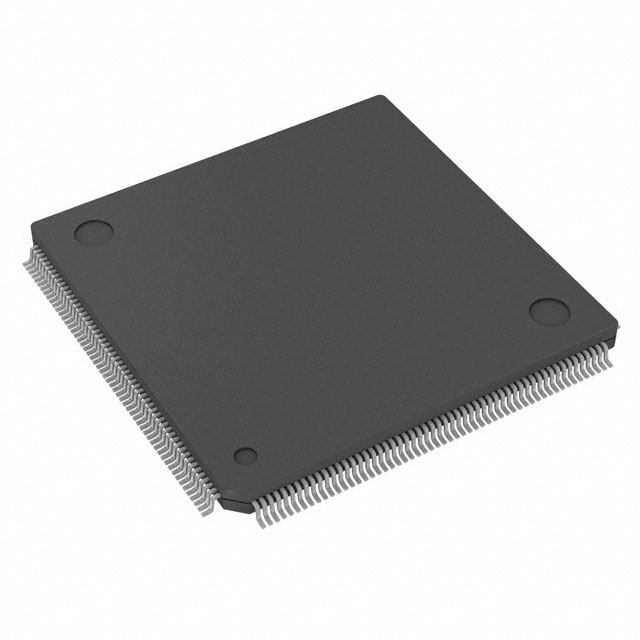

S6E2C58L0AGL2000A
IC MCU 32BIT 1MB FLASH 216LQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies FM4 S6E2C5 microcontroller featuring an ARM® Cortex®-M4F core. This 32-bit, single-core device operates at 200MHz and offers 1MB of FLASH program memory with 128KB of RAM. The S6E2C5L0AGL2000A is housed in a 216-LQFP (24x24) surface-mount package. It supports a wide range of connectivity options including CANbus, CSIO, EBI/EMI, I2C, LINbus, SD, SPI, UART/USART, and USB. Integrated peripherals include DMA, I2S, LVD, POR, PWM, and WDT. Data conversion capabilities are provided by 32x12b Analog-to-Digital converters and 2x12b Digital-to-Analog converters. This component is suitable for applications in industrial automation, automotive systems, and consumer electronics, operating within a temperature range of -40°C to 125°C.
Additional Information
Series: FM4 S6E2C5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 216-LQFP |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 32x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, SD, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 216-LQFP (24x24) |
| Number of I/O | 190 |
| Programmable | Not Verified |
