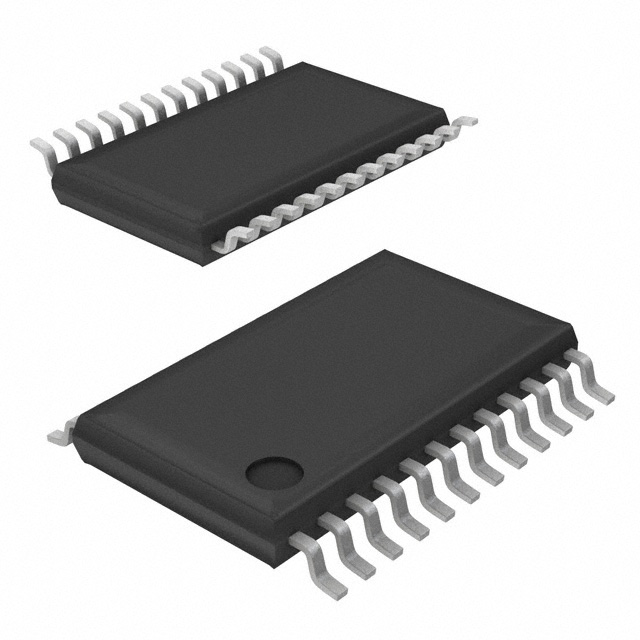

MB95F856KPFT-G-SNE2
IC MCU 8BIT 36KB FLASH 24TSSOPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies F²MC-8FX MB95850K series 8-bit microcontroller, part number MB95F856KPFT-G-SNE2, features a 36KB FLASH program memory and 1KB RAM. This device operates at a maximum frequency of 16MHz and includes an 8-bit F²MC-8FX core. Connectivity options include I2C, SIO, and UART/USART. On-chip peripherals comprise LVD, POR, PWM, and WDT. The integrated 4-channel 8/10-bit analog-to-digital converter facilitates signal acquisition. This surface-mount component is housed in a 24-TSSOP package and operates within an ambient temperature range of -40°C to 85°C. It is suitable for applications in the automotive and industrial sectors. The supply voltage range is 2.88V to 5.5V.
Additional Information
Series: F²MC-8FX MB95850KRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 36KB (36K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | F²MC-8FX |
| Data Converters | A/D 4x8/10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.88V ~ 5.5V |
| Connectivity | I2C, SIO, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 24-TSSOP |
| Number of I/O | 21 |
| Programmable | Not Verified |
