MB95F696KNPMC-G-102-SNE2

IC MCU 8BIT 36KB FLASH 48LQFP

Manufacturer: Infineon Technologies

Categories: Microcontrollers

Quality Control: Learn More

Infineon Technologies F²MC-8FX MB95690K series microcontroller, part number MB95F696KNPMC-G-102-SNE2, features an 8-bit F²MC-8FX core operating at 16MHz. This device offers 36KB of FLASH program memory and 1KB of RAM, along with 45 I/O lines. Integrated peripherals include LVD, POR, PWM, and WDT. Connectivity options encompass I2C, LINbus, SIO, and UART/USART. The analog front-end includes 12 channels of 8/10-bit A/D conversion. Supplied in a 48-LQFP (7x7) surface mount package, this component is suitable for applications requiring robust control and communication interfaces, commonly found in automotive and industrial automation sectors. Operating voltage ranges from 2.88V to 5.5V with an operating temperature range of -40°C to 85°C.

Additional Information

Series: F²MC-8FX MB95690KRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / Case48-LQFP
Mounting TypeSurface Mount
Speed16MHz
Program Memory Size36KB (36K x 8)
RAM Size1K x 8
Operating Temperature-40°C ~ 85°C (TA)
Oscillator TypeExternal
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorF²MC-8FX
Data ConvertersA/D 12x8/10b
Core Size8-Bit
Voltage - Supply (Vcc/Vdd)2.88V ~ 5.5V
ConnectivityI2C, LINbus, SIO, UART/USART
PeripheralsLVD, POR, PWM, WDT
Supplier Device Package48-LQFP (7x7)
Number of I/O45
ProgrammableNot Verified

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy

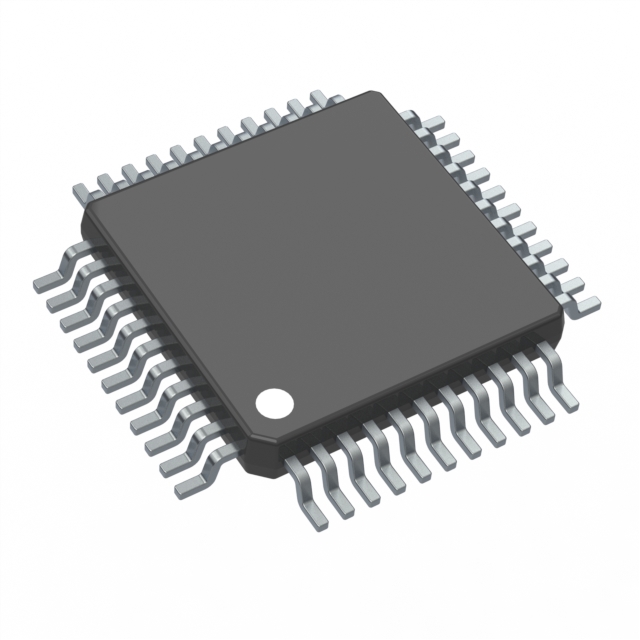

product image
CY95F698KPMC-G-UNE2

IC MCU 8BIT 60KB FLASH 48LQFP

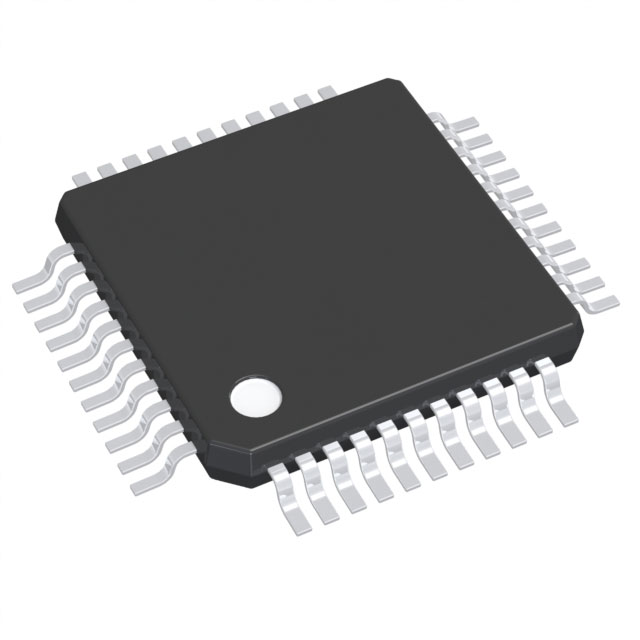

product image
