MB95F652LNPF-G-SNE2
IC MCU 8BIT 8KB FLASH 24SOPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies MB95F652LNPF-G-SNE2 is an 8-bit microcontroller featuring the F²MC-8FX core. This device offers 8KB of FLASH program memory and 256 bytes of RAM, operating at a maximum speed of 16MHz. It includes integrated peripherals such as POR and WDT, along with PWM capabilities. Connectivity options include I2C, LINbus, SIO, and UART/USART. The device is equipped with six 8/12-bit Analog-to-Digital converters and provides 20 general-purpose I/O pins. Designed for surface mount applications, it is supplied in a 24-SOIC package and operates within a temperature range of -40°C to 85°C. The voltage supply range is 1.8V to 5.5V. This component is utilized in industrial and automotive applications.
Additional Information
Series: F²MC-8FX MB95650LRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | F²MC-8FX |
| Data Converters | A/D 6x8/12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 24-SOP |
| Number of I/O | 20 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
XMC1402F064X0200AAXUMA1
IC MCU 32BIT 200KB FLASH 64LQFP

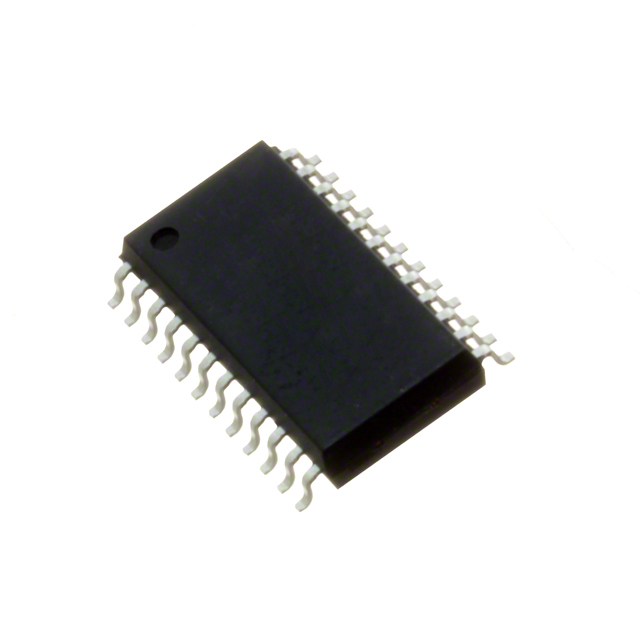

MB95F652ENPF-G-SNE2
