MB95F223KPF-G-SNE1
IC MCU 8BIT 8KB FLASH 16SOPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

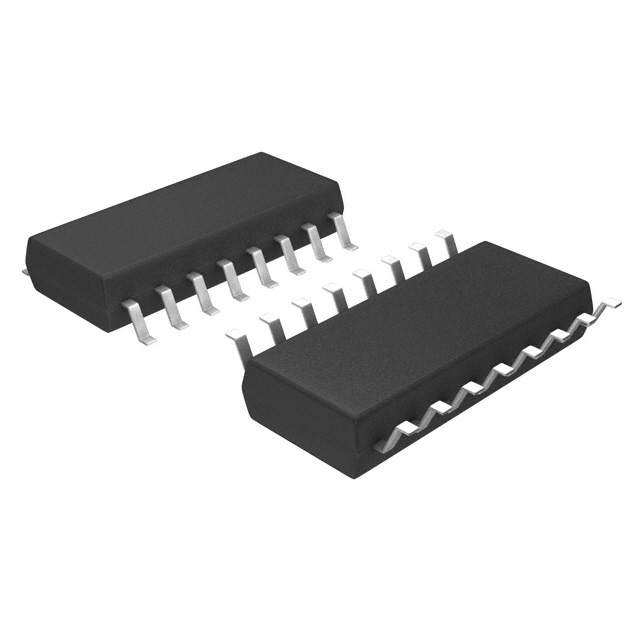

Infineon Technologies F²MC MB95220H series microcontroller, part number MB95F223KPF-G-SNE1, features an 8-bit F²MC-8FX core operating at 16MHz. This device integrates 8KB of FLASH program memory and 496 bytes of RAM, with a 5x8/10-bit analog-to-digital converter. Connectivity options include LINbus, SIO, and UART/USART. The microcontroller supports external oscillators and offers peripherals such as LVD, POR, PWM, and WDT. It is housed in a 16-SOIC package, suitable for surface mounting. The operating temperature range is -40°C to 85°C. This component finds application in automotive and industrial automation sectors.
Additional Information
Series: F²MC MB95220HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 496 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | F²MC-8FX |
| Data Converters | A/D 5x8/10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Connectivity | LINbus, SIO, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 16-SOP |
| Number of I/O | 13 |
| Programmable | Not Verified |
