MB90P224BPF-G
IC MCU 16BIT 96KB OTP 120PQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies MB90P224BPF-G is a 16-bit microcontroller from the F²MC-16F MB90220 series. This device features a 16MHz F²MC-16F core and offers 96KB of One-Time Programmable (OTP) program memory, complemented by 4.5KB of RAM. On-chip peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options are provided through EBI/EMI and UART/USART interfaces. The microcontroller integrates 16 channels of 10-bit Analog-to-Digital (A/D) converters. It is housed in a 120-QFP (28x28) surface-mount package and operates within a voltage range of 3V to 5.5V, with an ambient temperature range of -40°C to 105°C. This component is suitable for applications in automotive and industrial automation sectors.
Additional Information
Series: F²MC-16F MB90220RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 96KB (96K x 8) |
| RAM Size | 4.5K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | F²MC-16F |
| Data Converters | A/D 16x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | EBI/EMI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 120-QFP (28x28) |
| Number of I/O | 102 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

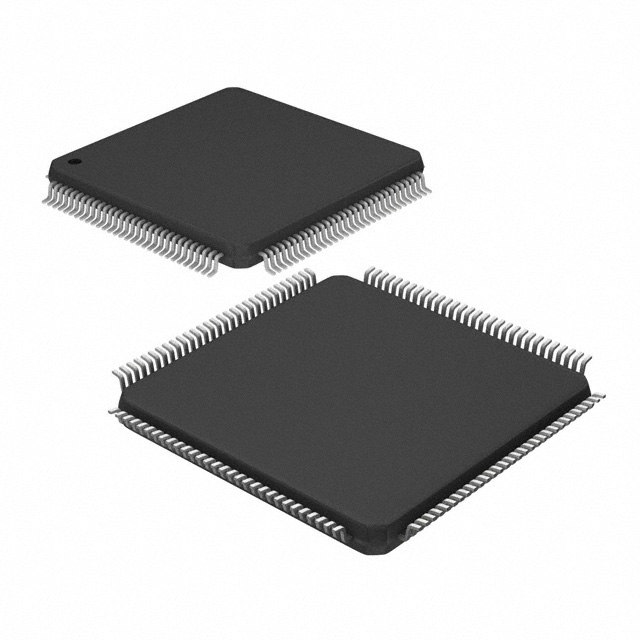

MB90223PF-GT-137-BND
