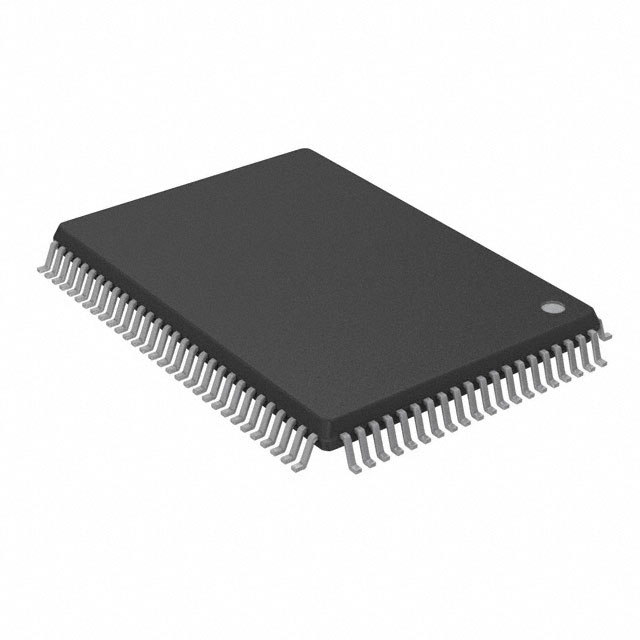

MB90F867ESPF-GE1
IC MCU 16BIT 128KB FLASH 100QFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies F²MC-16LX MB90860E series microcontroller, part number MB90F867ESPF-GE1, features a 16-Bit F²MC-16LX core operating at 24MHz. This device offers 128KB of FLASH program memory and 6KB of RAM. Connectivity options include EBI/EMI, I2C, LINbus, SCI, and UART/USART. It incorporates 24 channels of 8/10-bit A/D data converters. Peripherals include DMA, POR, and WDT for enhanced functionality. The MB90F867ESPF-GE1 is supplied in a 100-QFP (14x20) surface mount package, designed for operation in industrial and automotive applications. This component operates within a voltage range of 3.5V to 5.5V and across an ambient temperature range of -40°C to 105°C.
Additional Information
Series: F²MC-16LX MB90860ERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 6K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | F²MC-16LX |
| Data Converters | A/D 24x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, LINbus, SCI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 100-QFP (14x20) |
| Number of I/O | 82 |
| Programmable | Not Verified |
