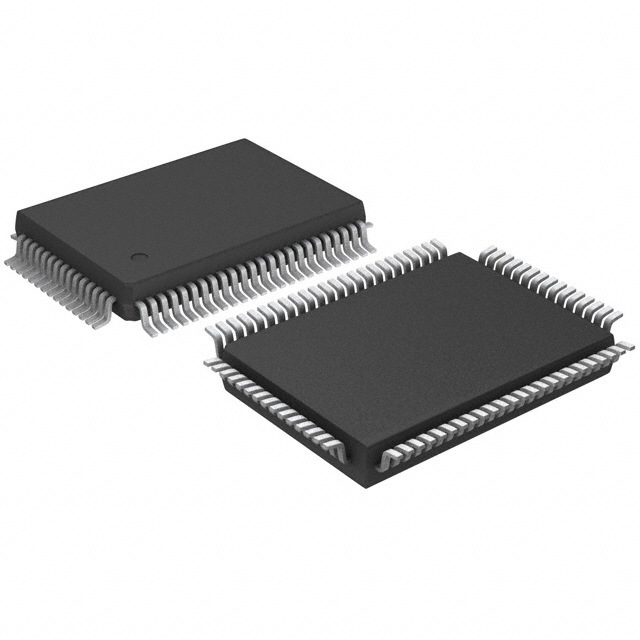

MB90678PF-G-224-BND-B
IC MCU 16BIT 64KB MROM 80PQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
The Infineon Technologies F²MC-16LX MB90675 series microcontroller, part number MB90678PF-G-224-BND-B, features a 16-bit F²MC-16L core operating at 16MHz. This device offers 64KB of Mask ROM for program storage and 3KB of RAM. Connectivity options include EBI/EMI, I2C, SCI, and UART/USART interfaces. It is equipped with an 8-channel, 8/10-bit Analog-to-Digital converter and peripherals such as Power-On Reset (POR) and Watchdog Timer (WDT). The microcontroller supports 84 I/O lines and is housed in a 100-QFP (14x20) surface-mount package. Operating voltage ranges from 2.7V to 5.5V, with an operating temperature range of -40°C to 85°C. This component finds application in automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: F²MC-16LX MB90675RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 3K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | Mask ROM |
| EEPROM Size | - |
| Core Processor | F²MC-16L |
| Data Converters | A/D 8x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, SCI, UART/USART |
| Peripherals | POR, WDT |
| Supplier Device Package | 100-QFP (14x20) |
| Number of I/O | 84 |
| Programmable | Not Verified |
